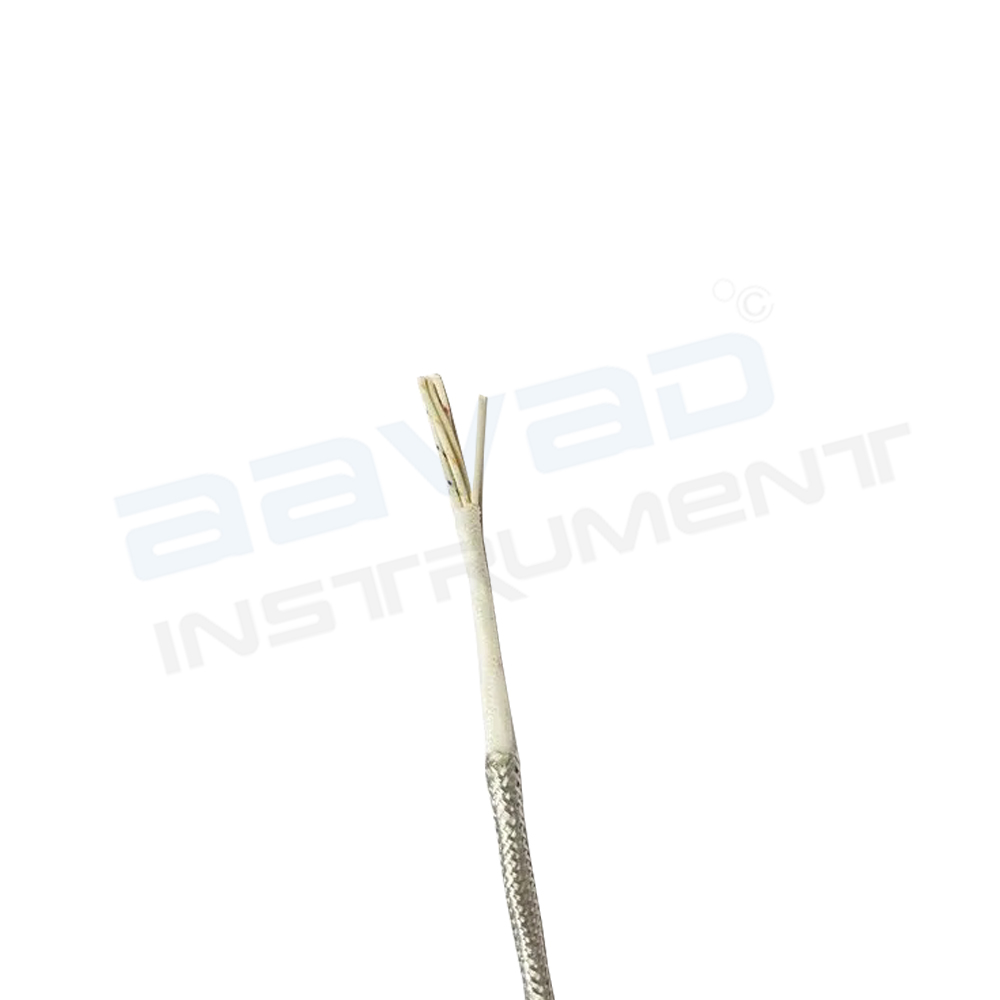

6 Core RTD (Resistance Thermometer) Cable
6 Core RTD (Resistance Thermometer) Cable
| Parameter | Specification |
|---|---|
| Conductor Type | Silver plated copper |
| Size | 7/0.2mm |
| Material | Glass gibre with st. st. braided |
| Temperature | 450 Deg c |
| Number of core | 6 |
| Glass fibre braided RTD 6 Core Cable is suitable for connecting to our range of Platinum Resistance Thermometer assemblies. Some are quite small and are ideal for extending out of an assembly pot seal but can be unwieldy for longer runs. | Others are more robust, offer greater mechanical strength and are more suited for extending out of an assembly connection head or for use in connecting to junction boxes. |
| Whilst some of these cables are suited for longer cable runs, our range of single and multipair instrumentation cable may be more suitable for such applications. | Fibreglass Insulated with St./St. Braid |
| Cores of stranded 7/0.2mm SPC conductors. | Cores glass fibre braided and varnished. Cores |
| bunched together, glass fibre braided overall | and impregnated with silicone varnish. |
| Stainless Steel braid overall. | Insulation Rating (ºC) |
| Continuous | + 480 |
| Short Term | + 540 |
