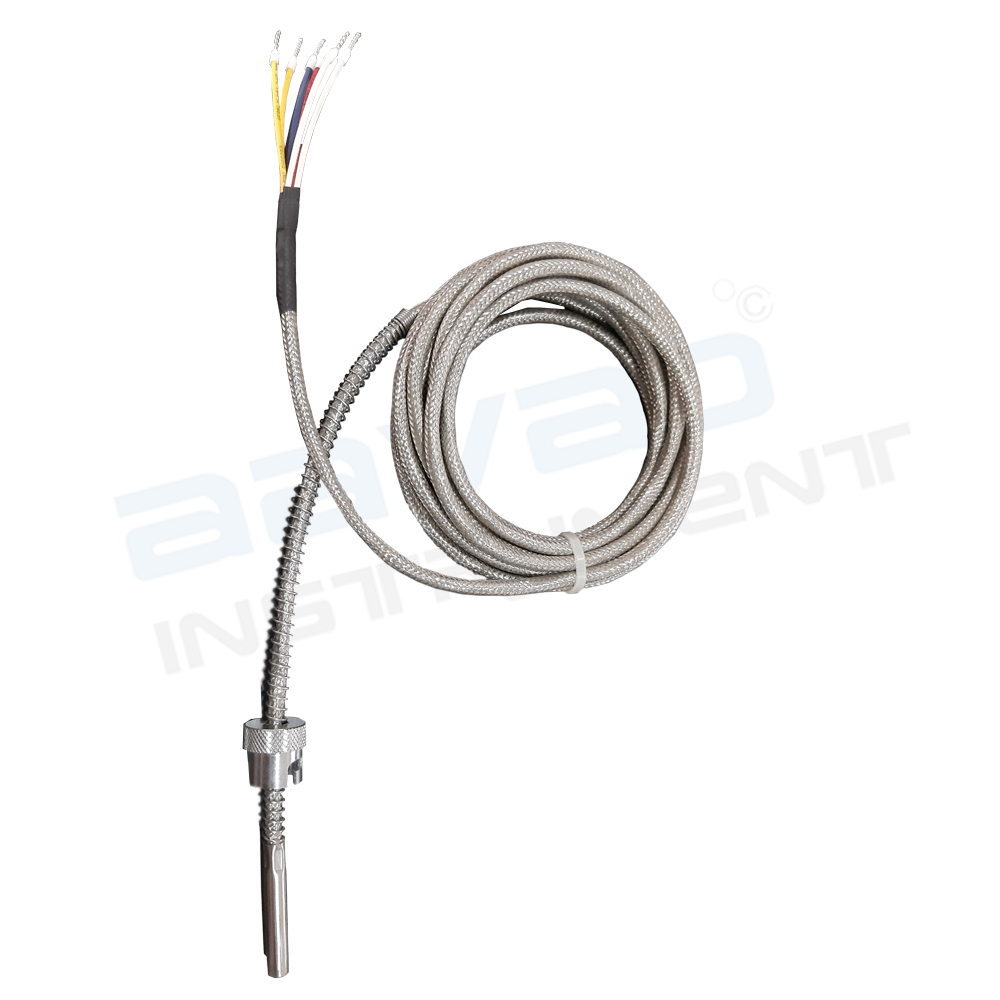

Bayonet Type Rtd Sensor
Bayonet Type Rtd Sensor
Industrial Bayonet bearing RTD Temperature Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APED-6×35 |
| Configuration | Duplex |
| Total no. of wires | 3 + 3 |
| Accuracy | Class B |
| Temperature range | 0 To 400 Degrees C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Cable length | 3 Meters |
| Cable type | TF/TF/SS |
| Tip Length | 35 mm |
| Sensor od | 6mm |
