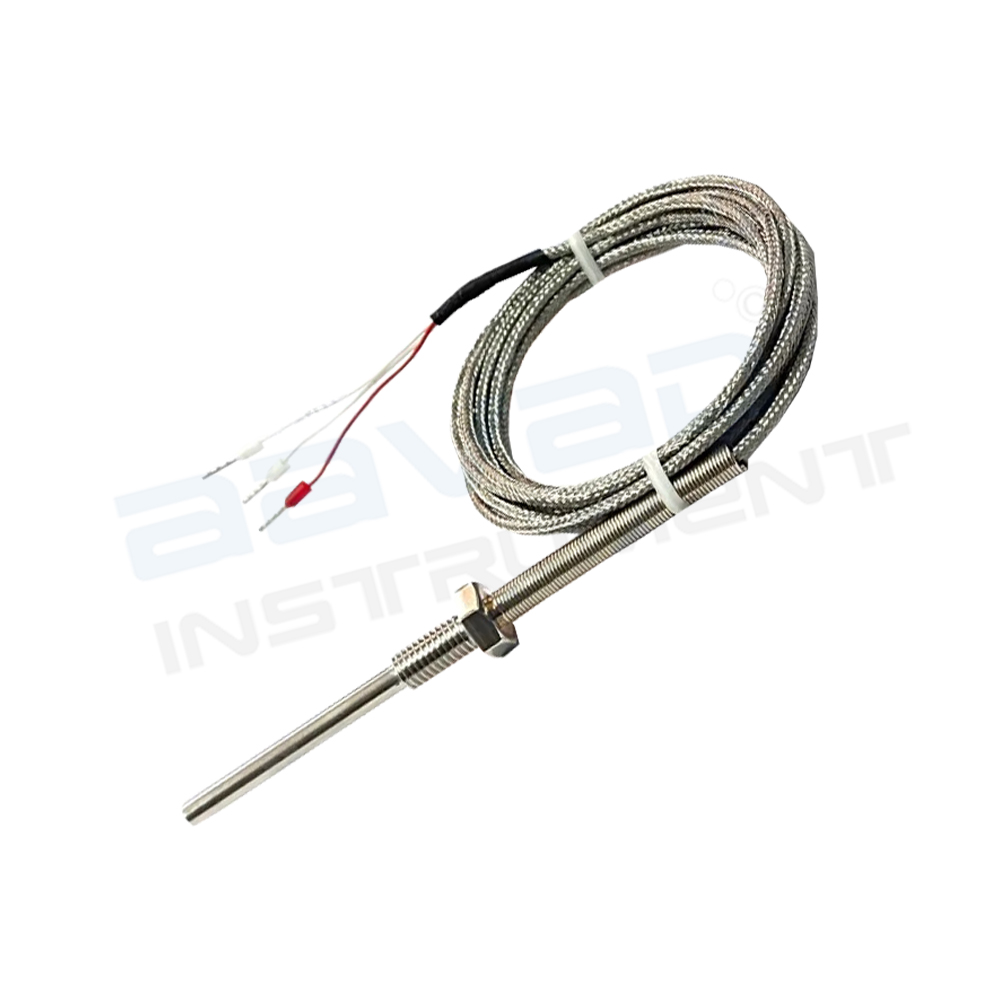

Bearing Temperature Detector
Bearing Temperature Detector
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES |
| Configuration | Simplex |
| No. of wire | 3 |
| Accuracy | Class B |
| Temperature range | -50 To 400 Degrees C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Process connection size | 1/8” (M) |
| Cable length | 2 Meter |
| Cable type | TF/TF/SS |
| Tip Length | 80 mm |
| Sensor od | 5 mm |
Description
Bearing Temperature Sensors. Bearing temperature detectors are installed in stationary bearing casing and monitor bearing temperature. Bearing temperature is an important parameter of heavy rotary machines and it indicates bearing health in rotating equipment.
