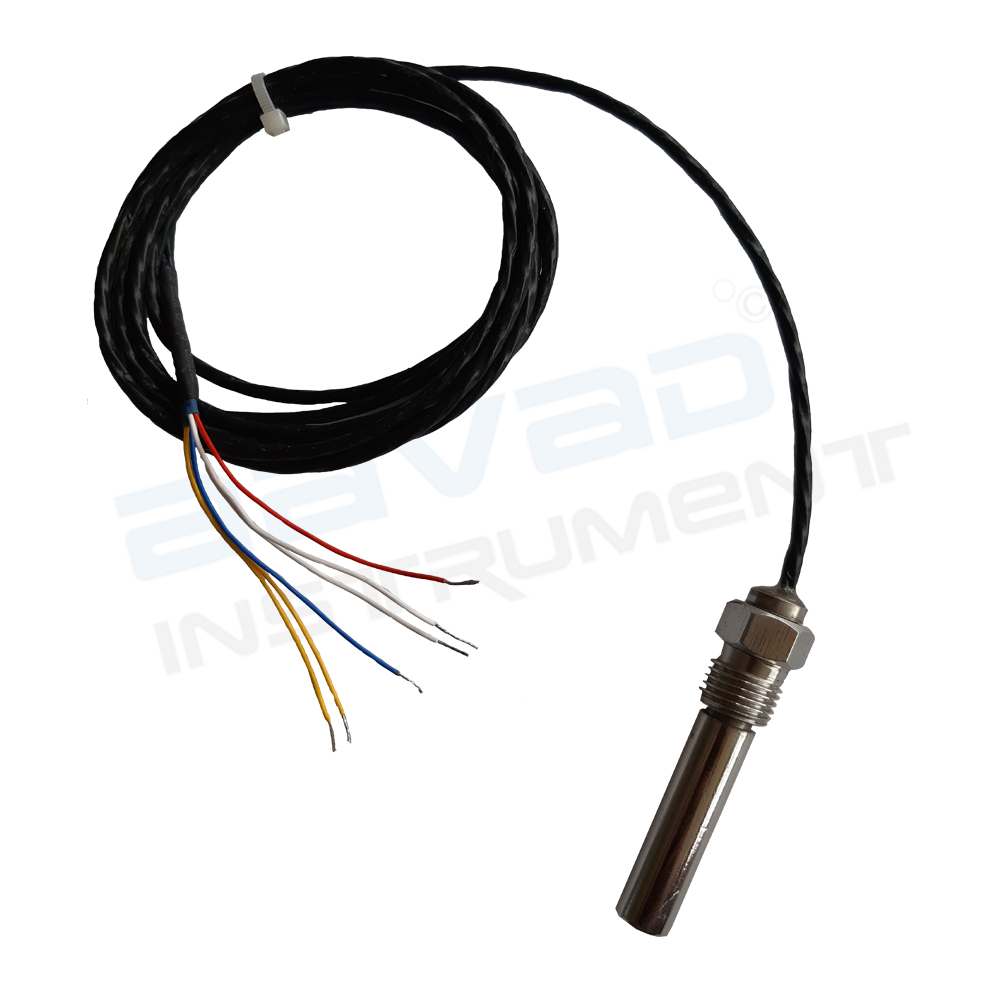

Bearing Temperature Sensor
Bearing Temperature Sensor
Bearing RTD Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APED- 10×75 |
| Configuration | Duplex |
| Total no. of wires | 3 + 3 |
| Accuracy | Class A |
| Temperature range | -50 To 400 Degrees C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Process connection size | 1/4” BSP (M) |
| Cable length | 3 Meters |
| Cable type | TF/TF |
| Tip Length | 75 mm |
| Sensor od | 10mm |
Description
- Bearing RTDs are designed for areas where there are space limitations. They are small, compact and are often used to detect temperature increases in bearings, thrust bearing plates, shafts, and motor windings. They are miniature low mass sensors which are fast responding.
