Blast Furnace Thermocouple
Blast Furnace Thermocouple

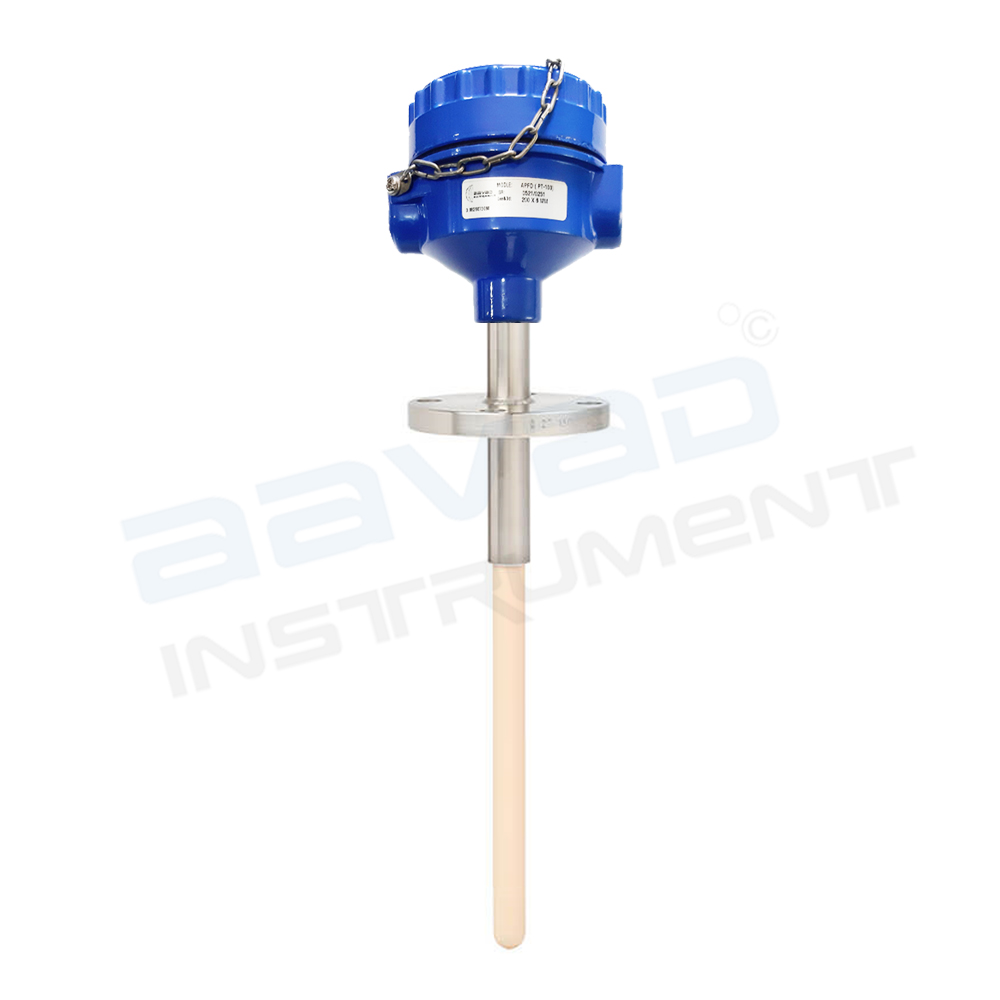

S Type Thermocouple
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | ASFS |
| Element | Pt. Rh (10%)/Pt |
| Element diameter | 0.5 mm |
| Calibration std. | As per ANSI mc 96.1 |
| Configuration | Simplex |
| Insulation | Twin hole ceramic Ker-710 |
| Hot junction | Un-grounded |
| Terminal block | Ceramic with nickel-plated |
| Head | Die-cast aluminum flame-proof ANSI |
| color-coded ‘Blue’ painted with threaded | cover and chain |
| Protection class | IP-67 |
| Cable entry | 1/2″ (F) NPT |
| Holding tube moc | Inconel -600 tube |
| Holding tube diameter | 30 mm |
| Holding tube length | 250 mm |
| Outer ceramic diameter | 24 X 18 mm. Id of ceramic Ker-710 (K-99, Alumina 99.7%) X 600 mm long |
| Inner ceramic diameter | 15 X 10 mm Id of ceramic Ker-710 (K-99, Alumina 99.7%) X 600 mm long |
| Ceramic insulator | 2 Hole 5.5 |
| Exposed tube sheath length | 1500 mm |
| Joints | Between holding tube & outer & |
| inner tube assembly by high temp. Alumina | compound bonding. |
| Process connection | 2 “300#RF Fix welded Flange |
| Length below flange | 1600 mm |
| Total length below head | 1750 mm |
| Range | Up To 1500°C |
Description
- The temperature measurement of blast furnace (BF) molten iron is a mandatory requirement in the ironmaking process, and the molten iron temperature is significant in estimating the molten iron quality and control blast furnace condition. However, it is not easy to realize real-time measurement of molten iron temperature because of the harsh environment in the blast furnace casthouse and the high-temperature characteristics of molten iron.
