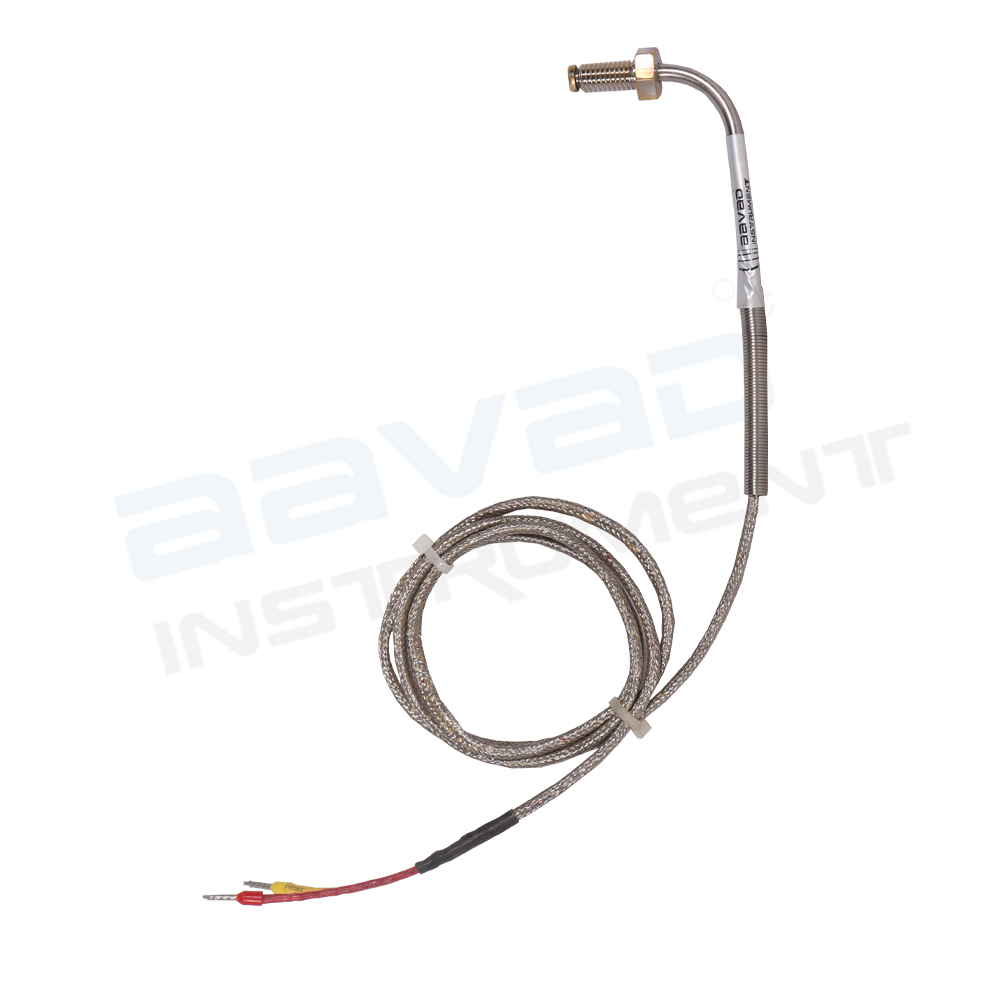

Bolt Type Thermocouple
Bolt Type Thermocouple
Bolt Type Thermocouple
| Parameter | Specification |
|---|---|
| Type | J (Ir/Co) |
| Make | Aavad |
| Model | AJES |
| Configuration | Simplex |
| Temperature range | 0 To + 250°C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 3 Meters |
| Cable type | Fiberglass/Fiberglass/SS |
| Sensor connection | M8 Bolt |
Description
- Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C.
