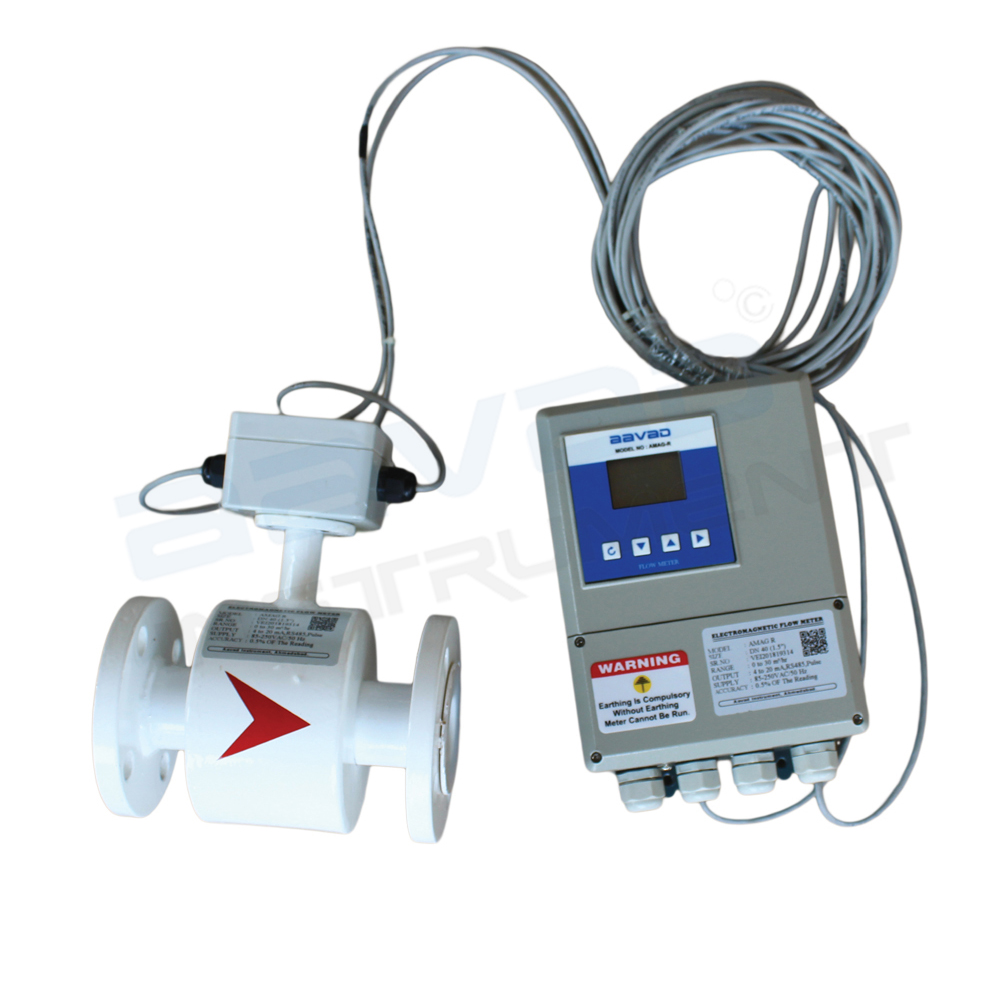

Digital Water Flow Meter (Remote Display)
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | AMAG – R |
| Service | Pls specify |
| Conductivity | ≥ 10 Μs/Cm |
| Output | 4 ‐ 20 Ma Isolated, Rs – 485, Pulse |
| Display | Lcd 16×4 line with 5 meter cable 9 digit totalized flow |
| Accuracy | + / ‐ 0.5 % of reading |
| Repeatability | + / ‐ 1% |
| Process temperature | 0°C ‐ 150℃ |
| Process pressure | Max: 10 Kg/cm2 |
| Internal | PTFE Lining |
| Electrode moc | SS 316L |
| Power supply | 230Vac |
| Response time | 0.3 Sec |
| Process connection | Asa 150 flanged SS |
| Operating temperature | 55℃ |
| Electronics housing | Die cast aluminum, IP 65 |
| Empty pipe detection | Yes |
| Back light lcd | Yes |
| Velocity | 0.2 to 10 m/s |
| Measuring unit | Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/S |
Description
- Digital Water Flow Meter Designed for Borewell to monitor the consumption of water from the intake well / Borewell It to be select basis of submersible pump capacity and flow.
