APES-6 X 75-1

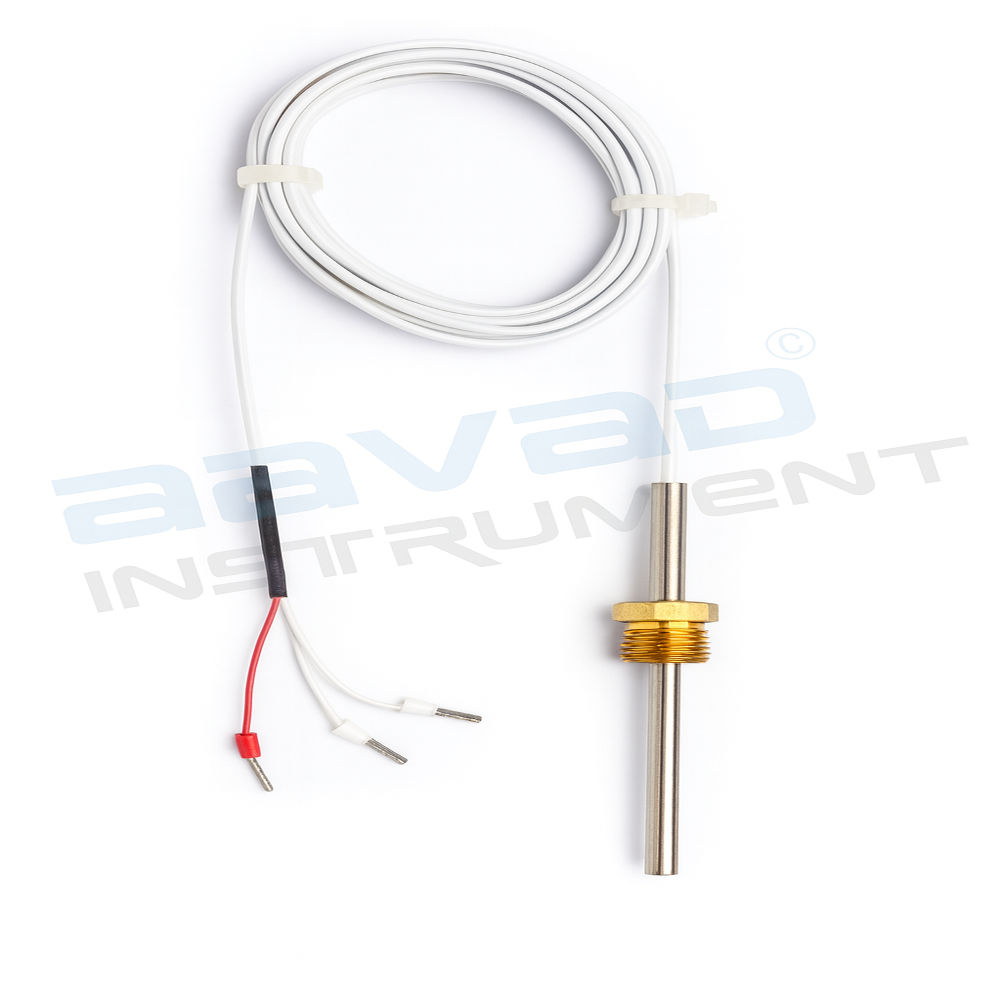

BTDS with extension cables
BTDS with extension cables
Wire Type RTD Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES |
| Configuration | Simplex |
| Total no. of wires | 3 |
| Accuracy | Class B |
| Temperature range | -50 To 400 Deg. C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Process connection size | 1/2'' BSP (M) Fix fitting |
| Cable length | 2 Mtr |
| Cable type | TF/TF |
| Tip length | 75 mm |
| Sensor od | 6mm |
Description
- 3 wire RTDs have a third wire that provides a measurement of the resistance of the lead wire and subtracts this resistance from the read value. This correction compensates for the effect of the resistance of the long lead wires on the temperature measurement and results in improved accuracy.
