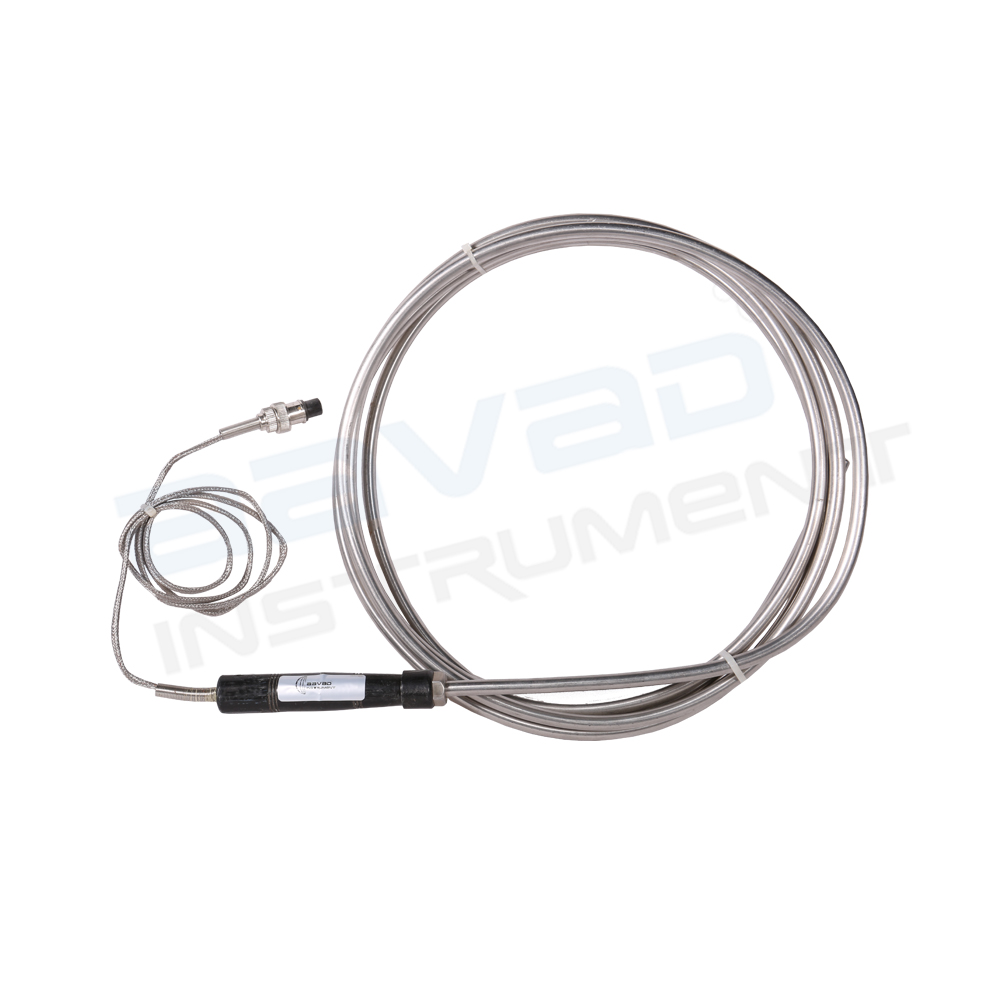

Connector Type RTD Sensor
Connector Type RTD Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES |
| Configuration | Simplex |
| Total no. of wires | 3 |
| Accuracy | Class B |
| Temperature range | -50 To 400 Degrees C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Connector | 3 Pin |
| Cable length | 1 Meter |
| Cable insulation | TF/TF/SS |
| Sensor od | 6mm |
| Sensor Length | 3 Meter |
Description
An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The resistance vs temperature relationship is well known and is repeatable over time. An RTD is a passive device.
