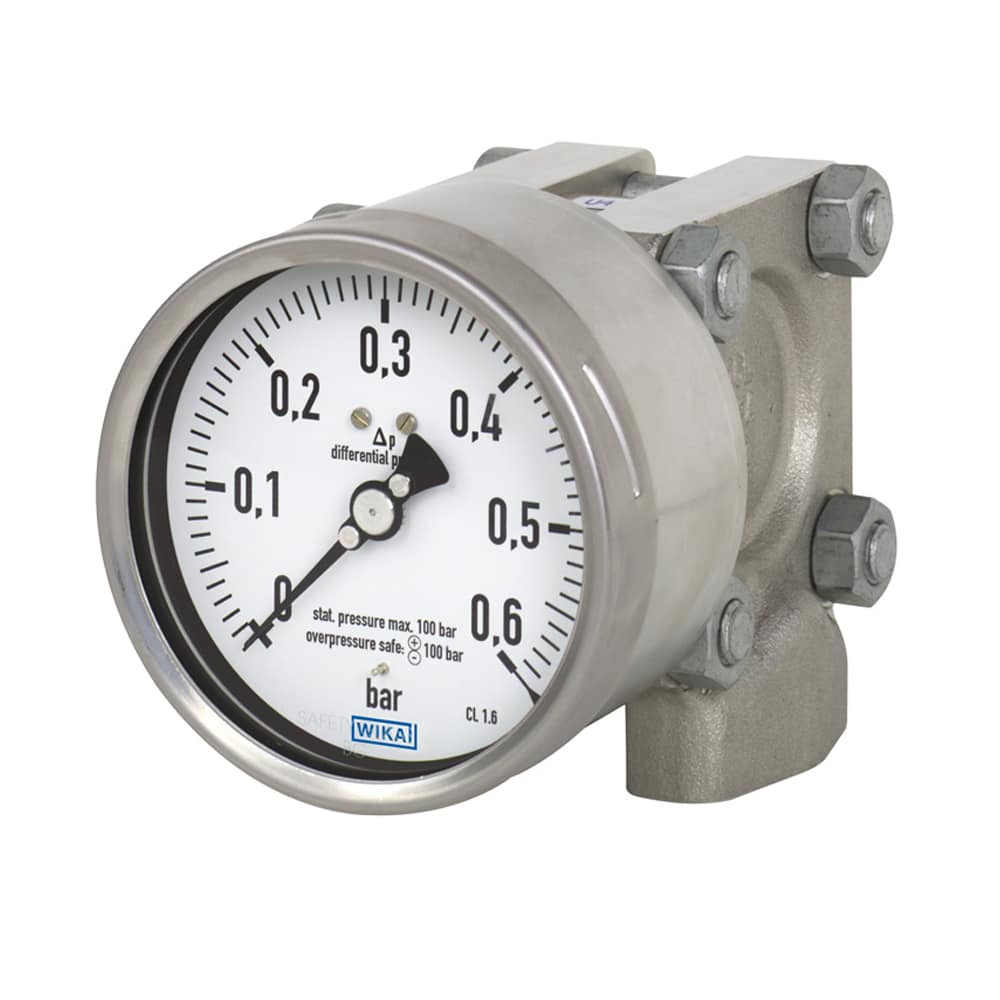

Differential Pressure Gauge with high static pressure
Differential Pressure Gauge with high static pressure
Differential pressure gauge, multi purpose
| Parameter | Specification |
|---|---|
| Model | 732.24.100 |
| Specifications according to data sheet | SPIN.07.01 |
| Case & Bezel | stainless steel SS316 |
| Movement | stainless steel |
| Accuracy class | class 2.5 % of fsv |
| Material of wetted parts | stainless steel SS316L + NiCrCo-alloy (Inconel) + FPM |
| Case filling | without |
| Nominal size | 100 mm |
| Overpressure safety/working pressure max. | PN 40 bar / PN 100 bar |
| Process connection | 2 x 1/4 NPT female |
| Connector position | lower mount |
| Ingress protection | IP 54 |
| Temperature range of medium | -20 … + 100 °C (-4 … + 212 °F) |
| Pressure Gauge Standard | International (standard EN837) |
| color for 1.scale (outside) | black, dial background: White *WIKA* |
Description
These high-quality differential pressure gauges are notable for their compact and robust design and are primarily used for level measurement on liquid gas tanks. With 6 different measuring cells, all usual tank sizes in cryotechnology are covered.
