AMAG - I

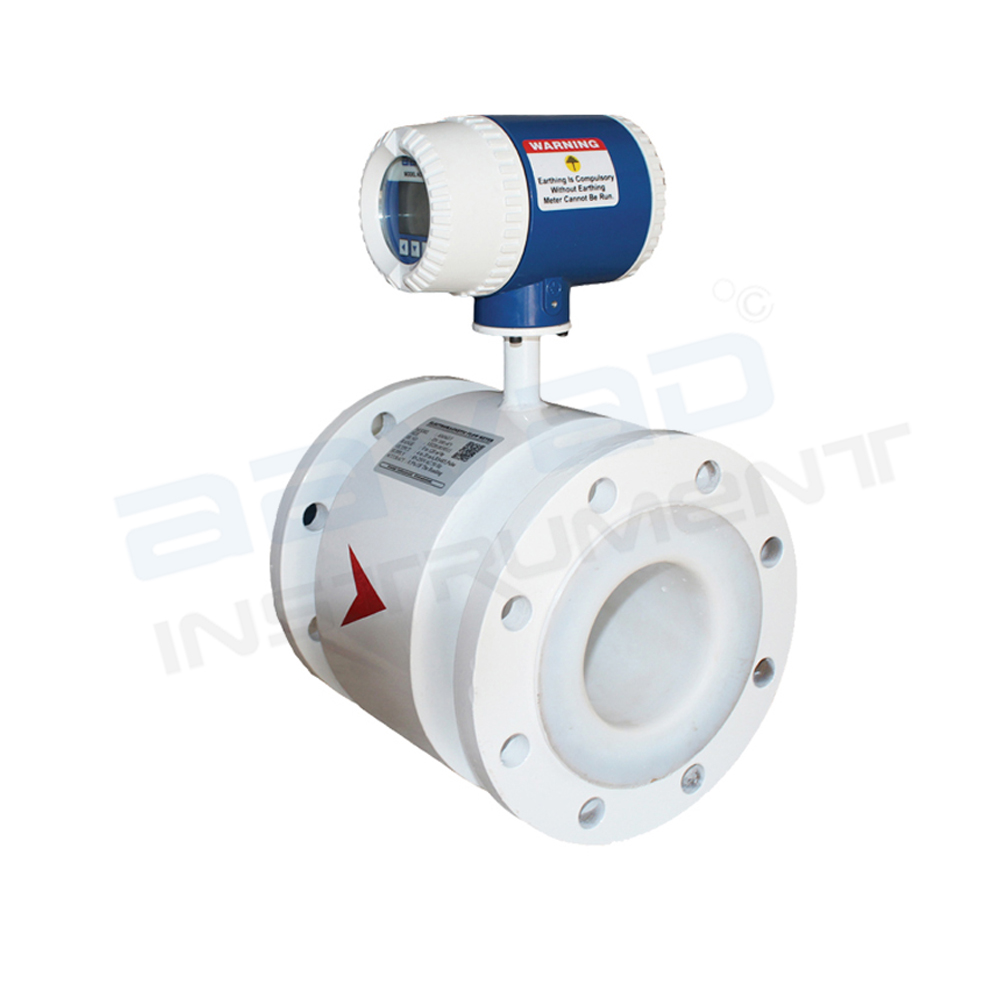

Digital Water Flow Meter
Digital Water Flow Meter
Electromagnetic Flow Meter
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | AMAG – I |
| Service | Pls specify |
| Conductivity | ≥ 10 ΜS/Cm |
| Output | 4 ‐ 20 Ma isolated, Rs – 485, Pulse |
| Display | LCD 16×4 Line 9 digit totalized flow |
| Accuracy | + / ‐ 0.5 % of reading |
| Repeatability | + / ‐ 1% |
| Process temperature | 0 °C ‐ 150 °C |
| Process pressure | Max: 10 Kg/Cm2 |
| Internal | PTFE lining |
| Electrode moc | SS 316 |
| Power supply | 230V ac |
| Response time | 0.3 Sec |
| Process connection | Asa 150 flanged MS |
| Operating temperature | 55°C |
| Electronics housing | Die-Cast aluminum, Ip 65 |
| Empty pipe detection | Yes |
| Backlight LCD | Yes |
| Velocity | 0.2 To 10 M/S |
| Measuring unit | Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/S |
Description
- Aavad Instrument Private Limited offers a Digital Flow Meter with Telemetry System as per the latest Central Groundwater Authority(CGWA) Guidelines. Also, this Digital Flow Meter with a Telemetry system is easy to install and user-friendly. It provides an IoT platform for water meters which is suitable for data acquisition from any remote location. Also, its Cloud platform having Real-Time Dashboard that allows viewing all analytical parameters as per CGWA guidelines. Alerts or Notifications during parameter exceedance will be received through Email and SMS.
