EPG-150-40

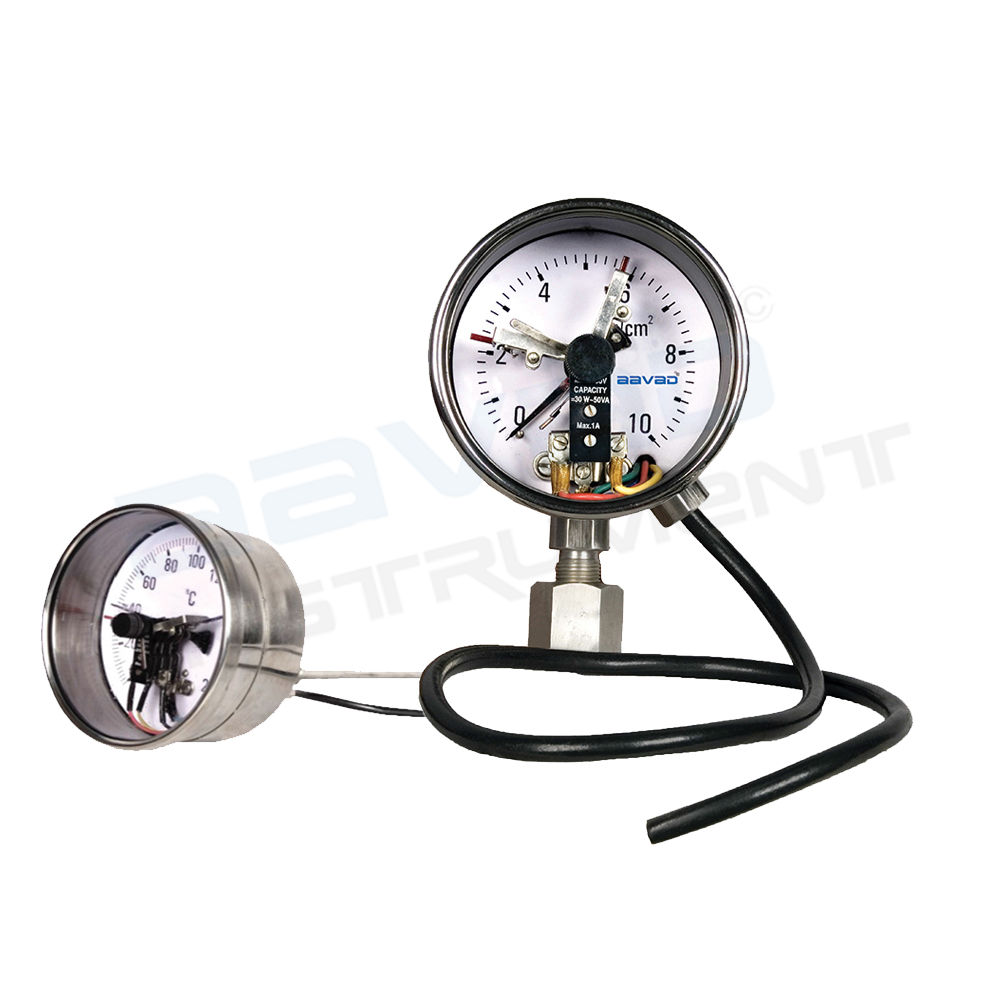

Electric Contact Gauge
Electric Contact Gauge
Electric Contacts Pressure Gauge
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Dial Size | 150 mm |
| Range | 0 To 40 Mpa (Single Scale) |
| Case & Bezel | SS 304, Bayonet Type |
| Socket | SS 304 |
| Movement | SS 304 |
| Sensing Material | SS 316, Bourdon Tube |
| Contact Type | Magnetic Snap‐Action |
| Dial | Aluminum, Black Markings On White Background |
| Contact Rating | 230V AC, 1 Amp (Max) |
| No Of Contacts | 2 NO + 2 NC |
| Pointer | Aluminum, Black, |
| Window | Acrylic Glass |
| Accuracy | + /‐ 1.6% Of FSD |
| Over‐Range Protection | 130% Of FSD |
| Connection | 1/2" Npt (M) |
| Mounting | Direct Bottom Connection |
| Joint | Argon Welding |
Description
- Usually, electric contact pressure gauge matches with relevant electrical apparatus, for instance, relay and contactor. The instrument is consisted of measurement system, indicating system, electric contact parts system, case, adjustment system, junction box (socket) and otherwise.
