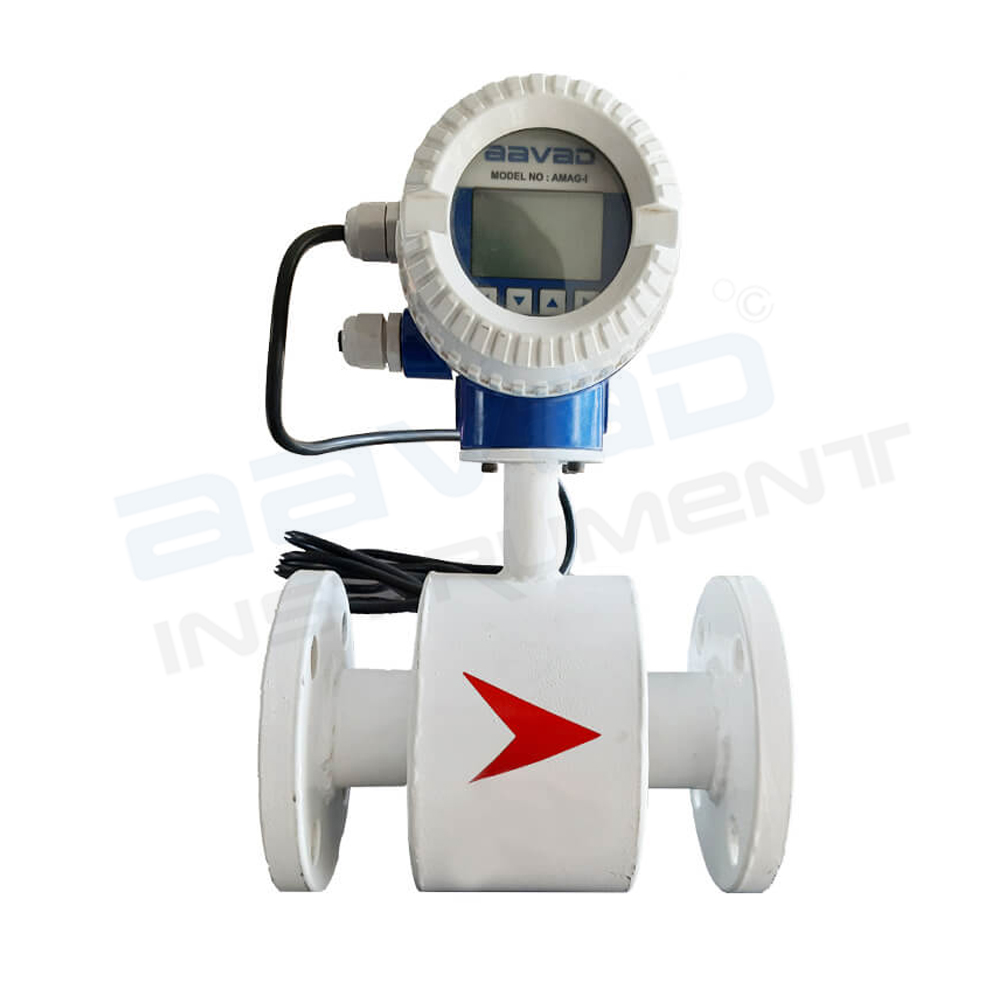

Electromagnetic Flow Meter
Electromagnetic Flow Meter
Electromagnetic Flow Meter
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | AMAG – I |
| Service | Pls specify |
| Conductivity | ≥ 10 ΜS/Cm |
| Output | 4 ‐ 20 Ma isolated, Rs – 485, Pulse |
| Display | LCD 16×4 Line 9 digit totalized flow |
| Accuracy | + / ‐ 0.5 % of reading |
| Repeatability | + / ‐ 1% |
| Process temperature | 0 °C ‐ 150 °C |
| Process pressure | Max: 10 Kg/Cm2 |
| Internal | PTFE lining |
| Electrode moc | SS 316L |
| Power supply | 230V ac |
| Response time | 0.3 Sec |
| Process connection | Asa 150 flanged MS |
| Operating temperature | 55°C |
| Electronics housing | Die-Cast aluminum, Ip 65 |
| Empty pipe detection | Yes |
| Backlight LCD | Yes |
| Velocity | 0.2 To 10 M/S |
| Measuring unit | Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/S |
Description
- Electromagnetic flow meters, or magmeters, are comprised of a transmitter and sensor that together measure flow. The magnetic flow meter’s sensor is placed inline and measures an induced voltage generated by the fluid as it flows through a pipe.
