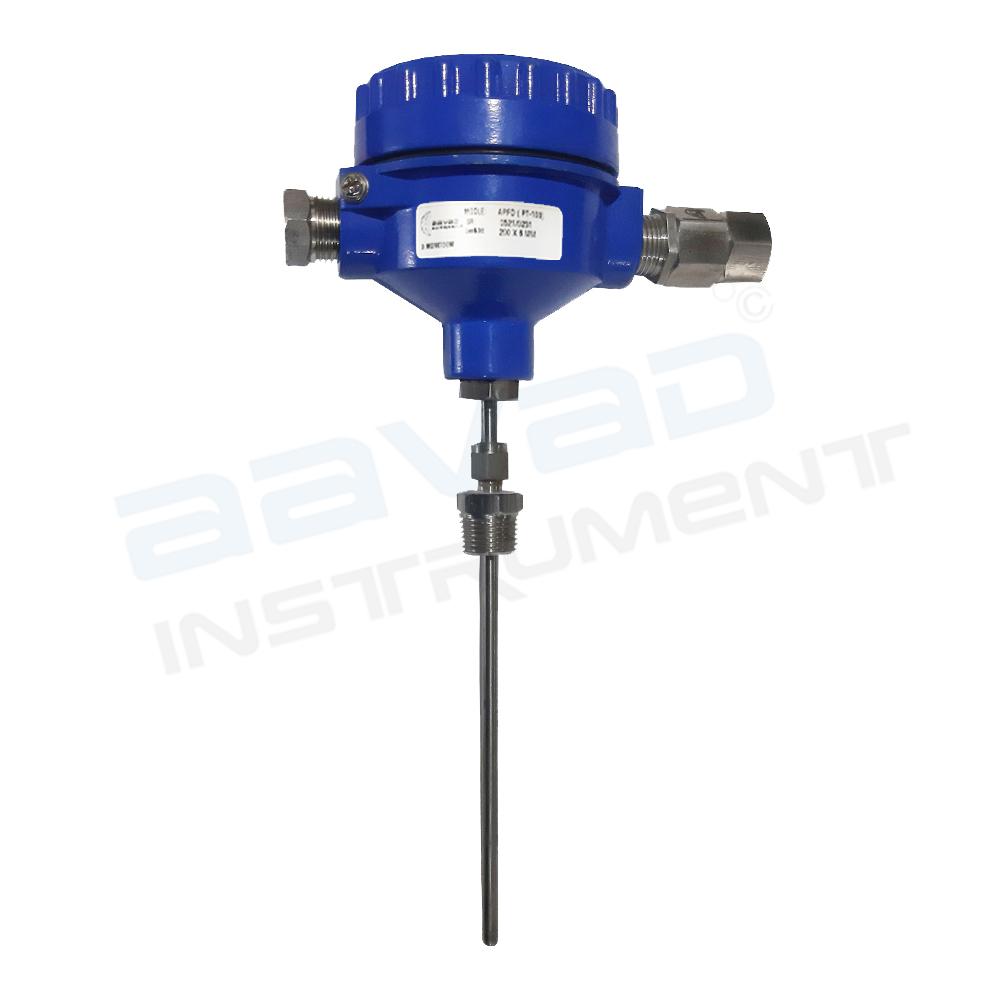

Flameproof Angular Rtd Sensors
Flameproof Angular Rtd Sensors
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APFS |
| Configuration | Simplex |
| Accuracy | Class A |
| Temperature Range | -50°C to 400°C |
| Material of Construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Protection Head | Die-cast aluminum flameproof head with threaded cap & chain |
| Protection Class | IP-67 |
| Head Cable Entry Connection | 1/2″ NPT |
| No. of Cable Entry | Double |
| Process Connection | 1/2″ NPT (M) Adjustable compression fitting |
| Terminal Block | Nickel-plated ceramic terminal block |
| OD | 6 mm |
| Length | 450 mm |
Description
Flameproof Angular Rtd Sensors are designed for temperature measurement in hazardous environments, in complex installations. The standard model is built with a flameproof die-cast aluminium head, SS304, SS316 and cast iron heads may be also be constructed. These sensors measure temperatures from -50 to 250 °C.
