Hazardous area sensing
-
Oil & gas processes
-
Chemical plant monitoring
-
Explosion-risk environments

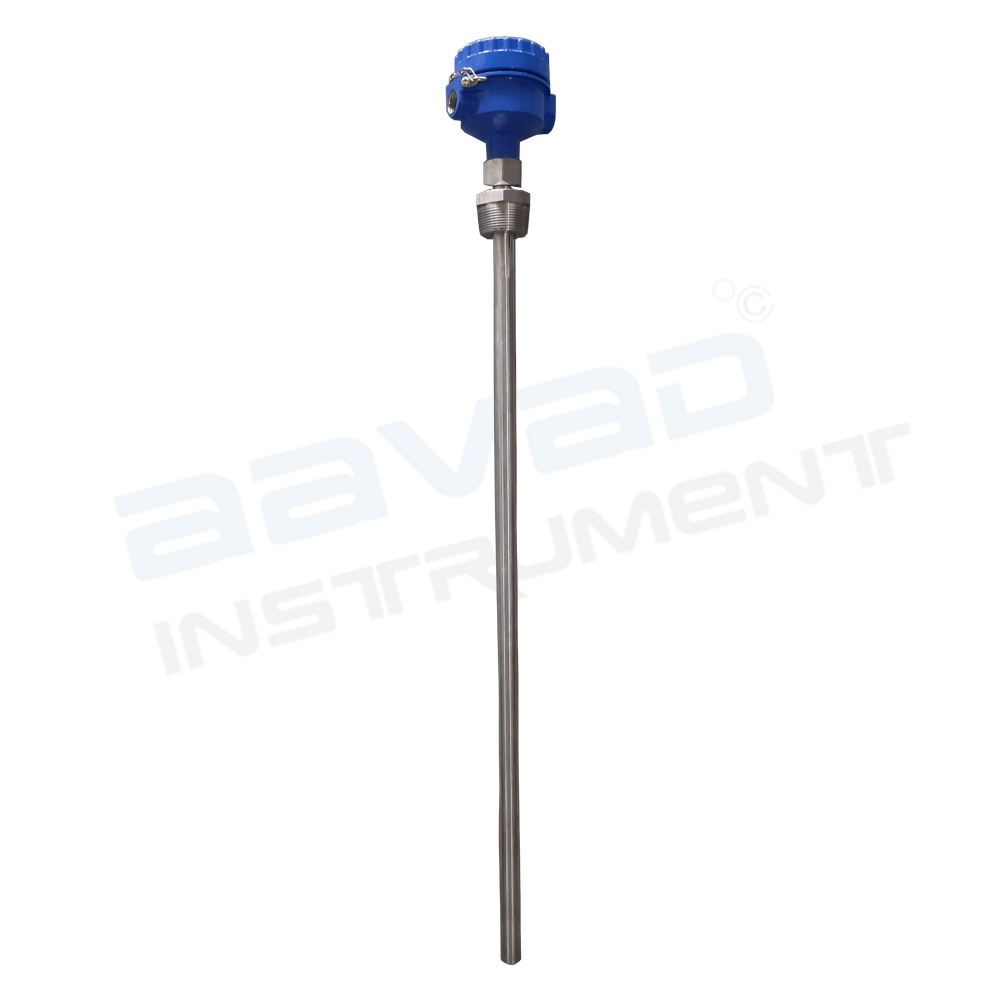

Flameproof RTD Sensor Mineral Insulated
Flameproof RTD Sensor Mineral Insulated
RTD PT-100 Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APFD |
| Configuration | Duplex |
| No. of Wire in Simplex | 3 |
| Total No. of Wires | 3 + 3 |
| Accuracy | Class A |
| Temperature Range | -50°C to 400°C |
| Material of Construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Protection Head | Die-cast aluminum flameproof head with threaded cap & chain |
| Head Protection Class | IP-67 |
| Head Cable Entry Connection | 1/2″ NPT |
| No. of Cable Entry | Double |
| Terminal Block | Nickel-plated ceramic terminal block |
| Process Connection | 1″ NPT Adjustable compression fitting |
| OD | 12 mm |
| Length Below Thread | 350 mm |
Description
- Flameproof and explosion proof RTD sensors are made of robust die cast aluminum head with mineral insulation. They can also be made of cast-iron, SS304 and SS316. Our standard RTD sensors are certified flameproof for gas groups l, llA and llB. An assembly certified for gas group IIC (Hydrogen) can also be constructed.
