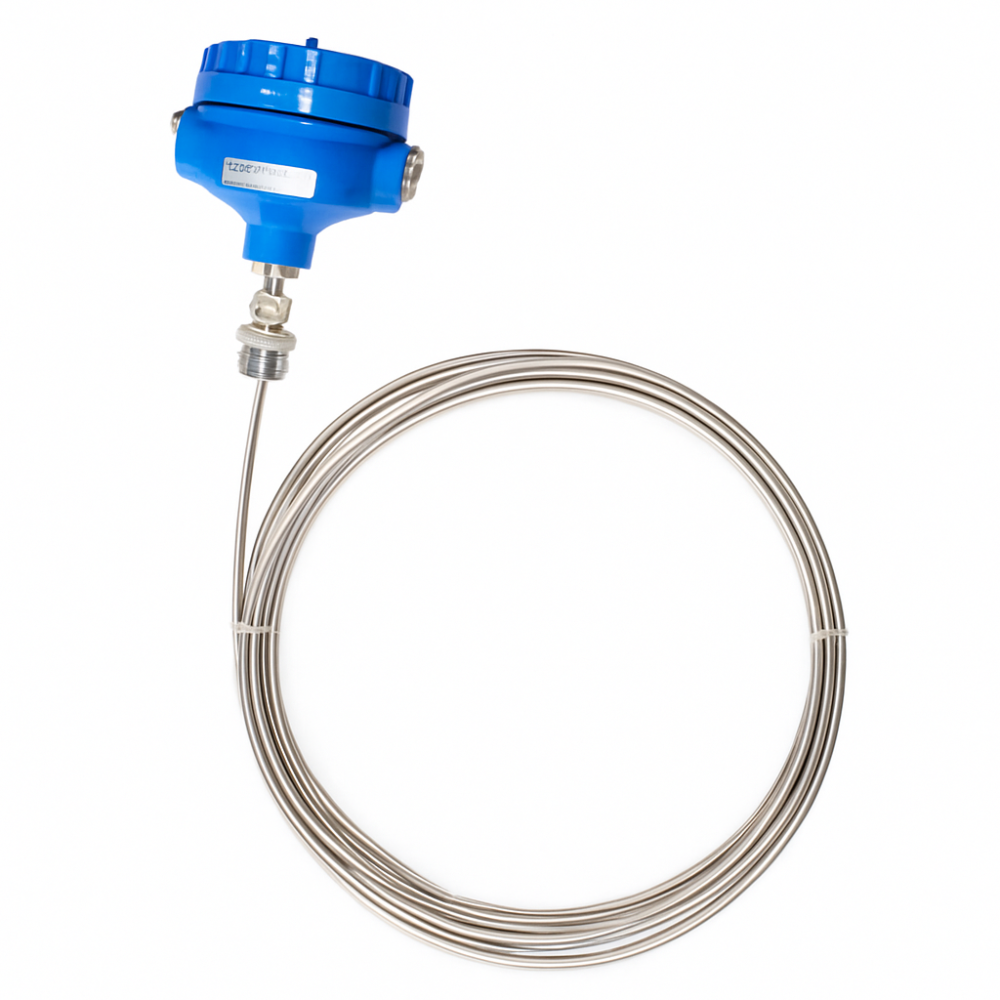

Flameproof Rtd Sensors – Standard Assembly
Flameproof Rtd Sensors – Standard Assembly
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APFS |
| Configuration | Simplex |
| No. of Wire | 3 |
| Accuracy | Class A |
| Temperature Range | -50°C to 400°C |
| Material of Construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Protection Head | Die-cast aluminum flameproof head with threaded cap & chain |
| Protection Class | IP-67 |
| Head Cable Entry Connection | 1/2″ NPT |
| No. of Cable Entry | Single |
| Terminal Block | Nickel-plated ceramic terminal block |
| Process Connection | 1/2″ BSP (M) Adjustable compression fitting |
| OD | 6 mm |
| Length | 2800 mm |
Description
Flameproof RTD sensors with ceramic protection tubes are designed for temperature measurement in hazardous environments. They are made flameproof and explosion proof via a robust die cast aluminum head and mineral insulation. The standard head for Flameproof RTD sensors is certified flameproof for gas groups I, IIA and IIB.
