SDPG-6"
Flange Type Pressure Gauge
Flange Type Pressure Gauge

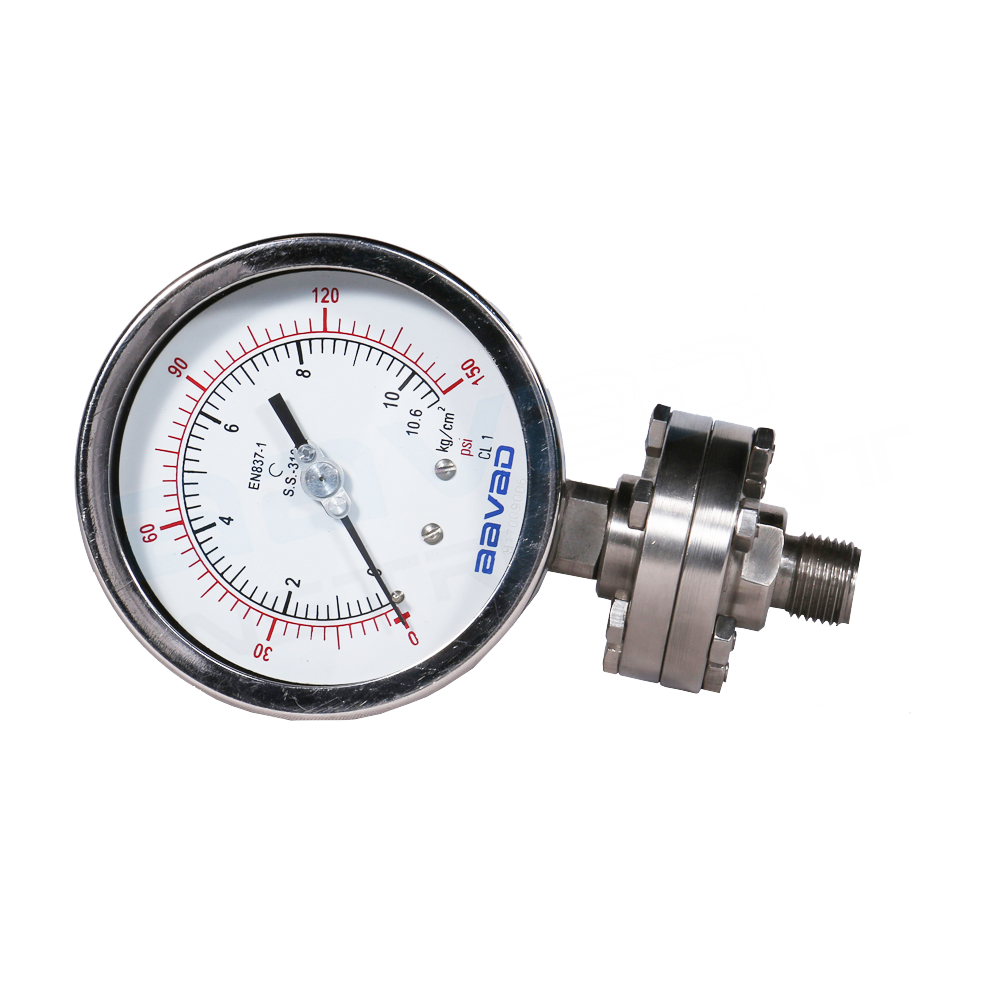

Diaphragm Sealed Flange Type Pressure Gauge
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Dial Size | 150 mm |
| Range | 0 To 10.6 Kg/Cm2 |
| Configuration | Sealed Diaphragm |
| Case & Bezel | SS 304, Bayonet Type |
| Movement | Â SS 304 |
| Bourdon | Â SS 316 |
| Top Chamber | SS 304, PTFE Coating |
| Bottom Chamber | SS 316, PTFE Lining |
| Sensing Element | SS 316L, Diaphragm PTFE Coating |
| Socket | Â SS 316 |
| Connection | Flange 2" 150#RF |
| Mounting | Direct Bottom |
| Pointer | Micro Zero Pointer |
| Dial | Aluminium, Black Marking On White Background |
| Blow Off Disc | No |
| Joint | Argon Arc Welded |
| Glass | Shatterproof Glass |
| Over-Range Protection | 130% Of  FSD |
| Accuracy | ±1.6% FSD |
| Operation Temperature | -40 ~ 200 °C |
| Glycerine Filling | No |
Description
- Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In
diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system.
