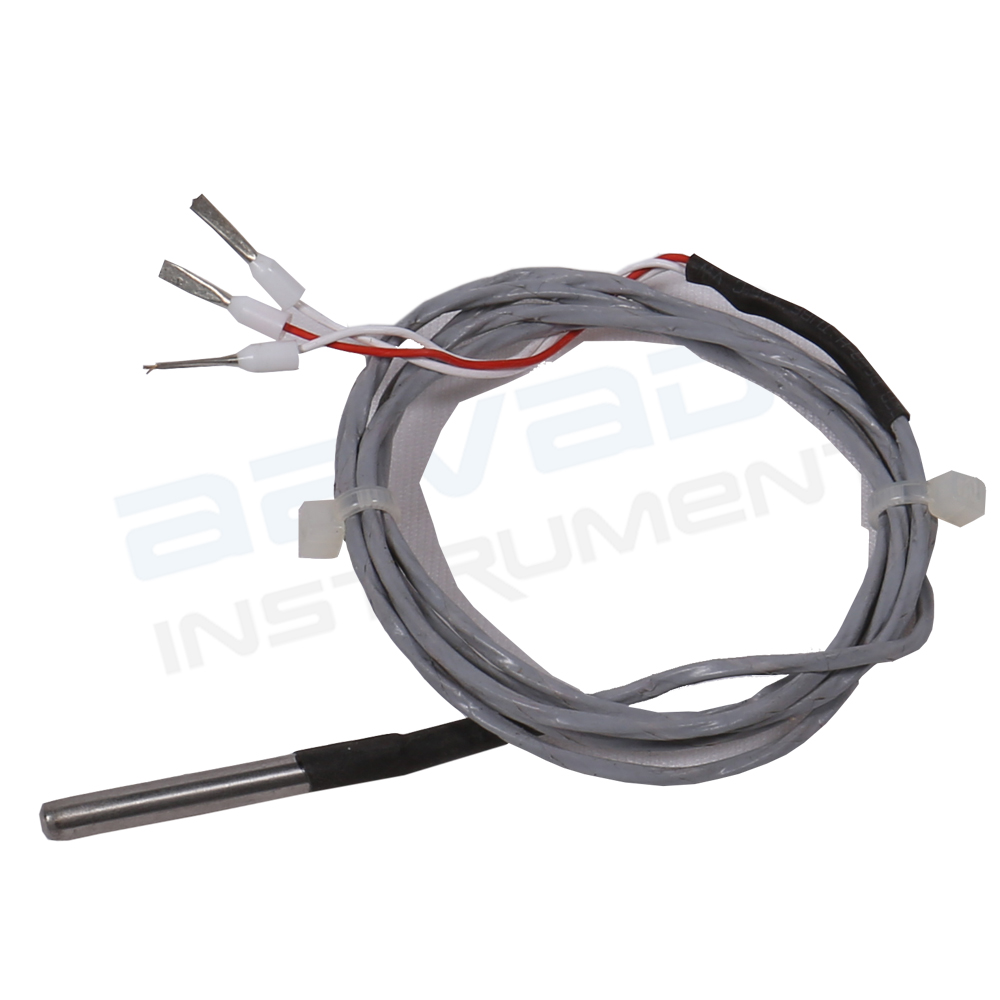

Freezer Probe RTD
Freezer Probe RTD
RTD Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES |
| Configuration | Simplex |
| Total no. of wires | 3 |
| Accuracy | Class B |
| Temperature range | -50 to 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 3 meter |
| Cable type | Teflon/Teflon |
| Sensor od | 6 mm |
| Sensor length | 50 mm |
Description
- Resistance Temperature Detectors (RTDs) are standard sensors used across industrial applications to measure temperature. RTDs often use a platinum wire to measure temperature. This video introduces a reference design for replacing the platinum element with a digital temperature sensor to improve accuracy and overall system cost. Tune in as we review the current RTD implementations, the new digital replacement, and system-level performance testing.
