ABWS-D700

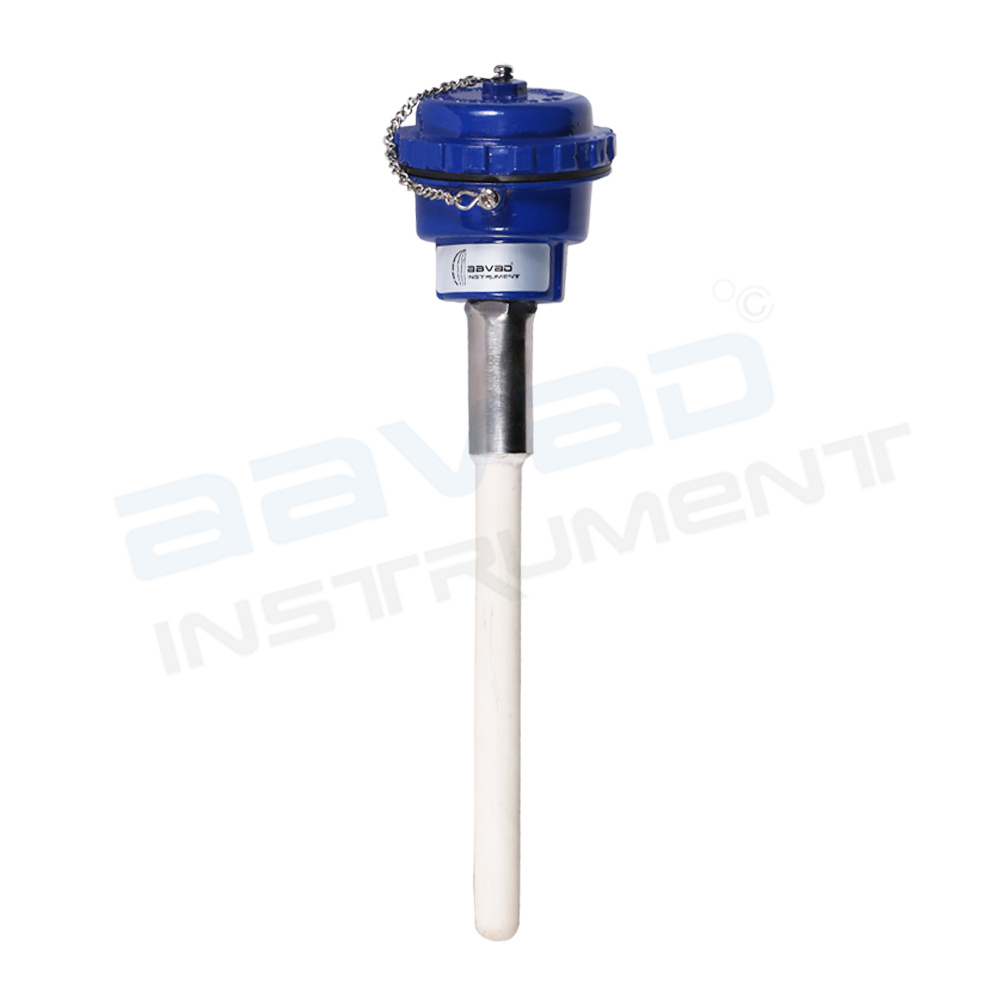

Glass Furnace Thermocouple
Glass Furnace Thermocouple
High-Temperature Thermocouple
| Parameter | Specification |
|---|---|
| Type | ” B “ |
| Make | Aavad |
| Model | ABWS |
| Element | Pt30%Rh /Pt.6%Rh) |
| Element diameter | 0.50 mm |
| Calibration std. | As per ANSI mc 96.1 |
| Configuration | Simplex |
| Insulation | Twin hole ceramic Ker-710 |
| Hot junction | Un-grounded |
| Terminal block | Ceramic with nickel-plated brass terminals |
| Head | Die-Cast aluminum weather-proof ANSI color-coded ‘Blue’ painted with threaded cover and chain |
| Protection class | IP-65 |
| Cable entry | 3/4″ ET |
| Holding tube moc | SS 310 |
| Holding tube diameter | 30 mm |
| Holding tube length | 150 mm sheath |
| No. of protection | Double protection |
| Outer ceramic diameter | 19 X 14 mm. Id of ceramic Ker-710 (K-99, Alumina 99.7%) X 700 mm long |
| Inner ceramic diameter | 12 X 8 mm Id of ceramic Ker-710 (K-99,Alumina 99.7%) X 700 mm long |
| Exposed ceramic sheath length | 550 mm |
| Joints | Between holding tube & outer & inner tube assembly by high temp. alumina compound bonding. |
| Range | Up To 1700°C |
Description
- Temperature sensors used for monitoring the temperature in the glass manufacturing process are called thermocouples. These sensors are typically platinum-based and are designed to withstand extremely high temperatures, for example as high as 1500°C to 1700°C, found in the furnaces of container glass manufacturers.
