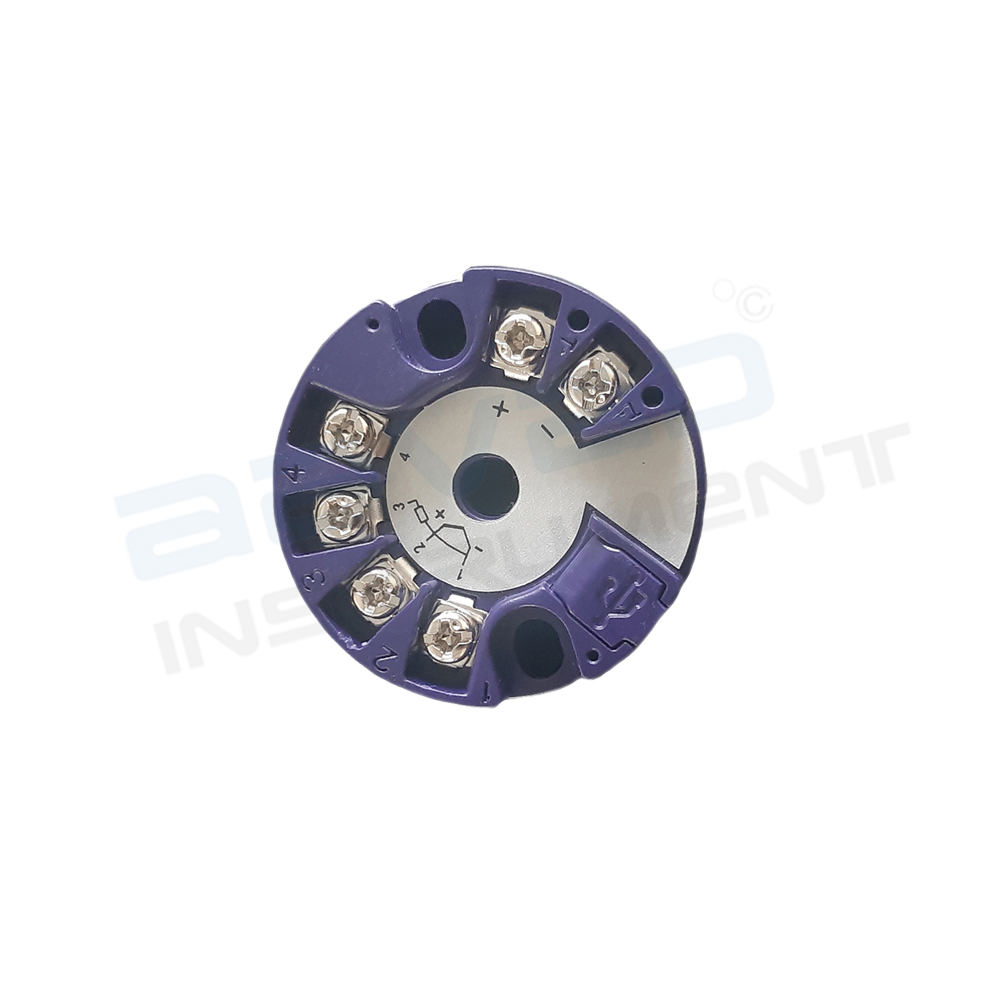

Head Mounted Temperature Transmitter
| Parameter | Specification |
|---|---|
| Input | RTD/Thermocouple |
| Output signal | 4-20mA |
| Max load | Max. (V power supply-7.5V)/0.022A (current output) |
| Measurement | Tempt-linearity, resistance-linearity, voltage-linearity |
| Circuit limit | ＜= 22mA |
| Response time | ＜= 1second |
| Saturation current | Low side 3.9mA, high side 20.5mA |
| Alarm current | Sensor damager or sensor turns off the output is 3.9mA |
| Accuracy | 0.1%FS |
| Power supply | U=12V to 40V |
| Working temperature | -40 to 85℃ |
| Storage temperature | -40 to 100℃ |
| Condensation | Allowable |
| Protection | IP-66 (Mounted) |
| Earthquake resistance | 4g/2 to 150hz |
| Voltage affection | Can ignore |
| Mounted angle | No limit |
| Mount area | Top of b type box |
Description
- A head-mounted temperature transmitter is used to convert input signals such as RTD, a thermocouple to linear output signal 4-20 mA.
