AKWS-I

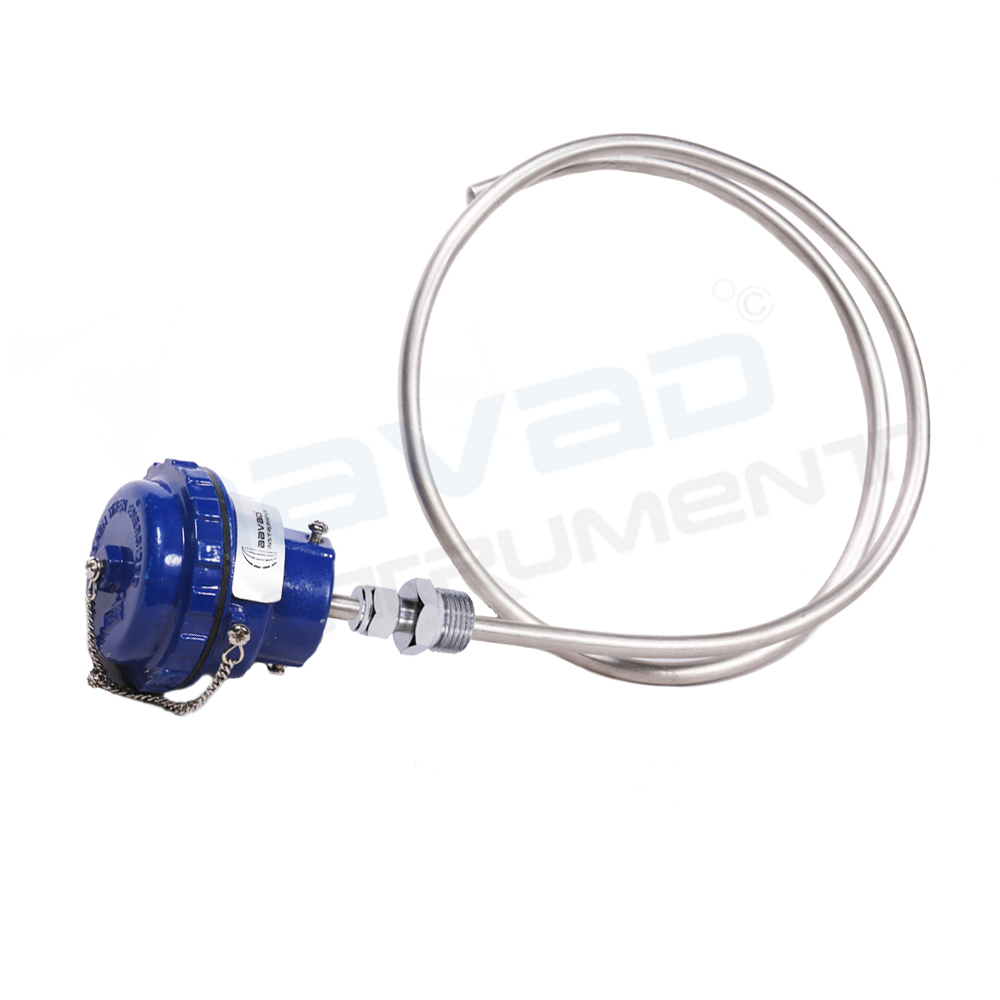

Head Type Thermocouple Sensor
Head Type Thermocouple Sensor
Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKWS |
| Configuration | Simplex |
| Temperature range | 0 To 650℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) adjustable |
| Protection head | Die-Cast aluminum head with threaded cap & chain |
| Head protection class | IP-65 |
| Head cable entry connection | ¾ “Et |
| No. of cable entry | Single |
| Terminal block | Nickel Plated ceramic terminal block |
| Od | 6 mm |
| Length | 2400 mm |
Description
- A thermocouple is a simple, robust and cost-effective temperature sensor used in a wide range of temperature measurement processes.
