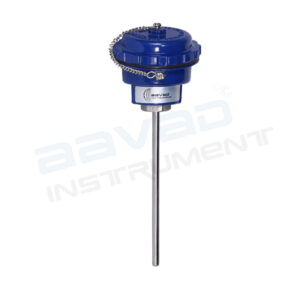

Heat Temperature Sensor
Heat Temperature Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APWD-6×50 |
| Configuration | Duplex |
| No. of Wire | 3 + 3 |
| Accuracy | Class B |
| Temperature Range | -50°C to 400°C |
| Material of Construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Protection Head | Die-cast aluminum head with threaded cap & chain |
| Head Protection Class | IP-65 |
| Head Cable Entry Connection | ¾" ET |
| No. of Cable Entry | Single |
| Terminal Block | Nickel-plated ceramic terminal block |
| OD | 6 mm |
| Length Below Head | 50 mm |
Description
An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The resistance vs temperature relationship is well known and is repeatable over time.
