High Temperature Thermocouple
High Temperature Thermocouple

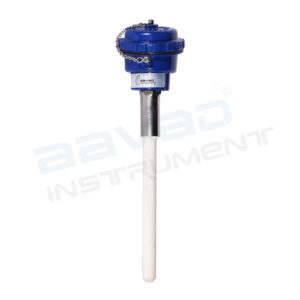

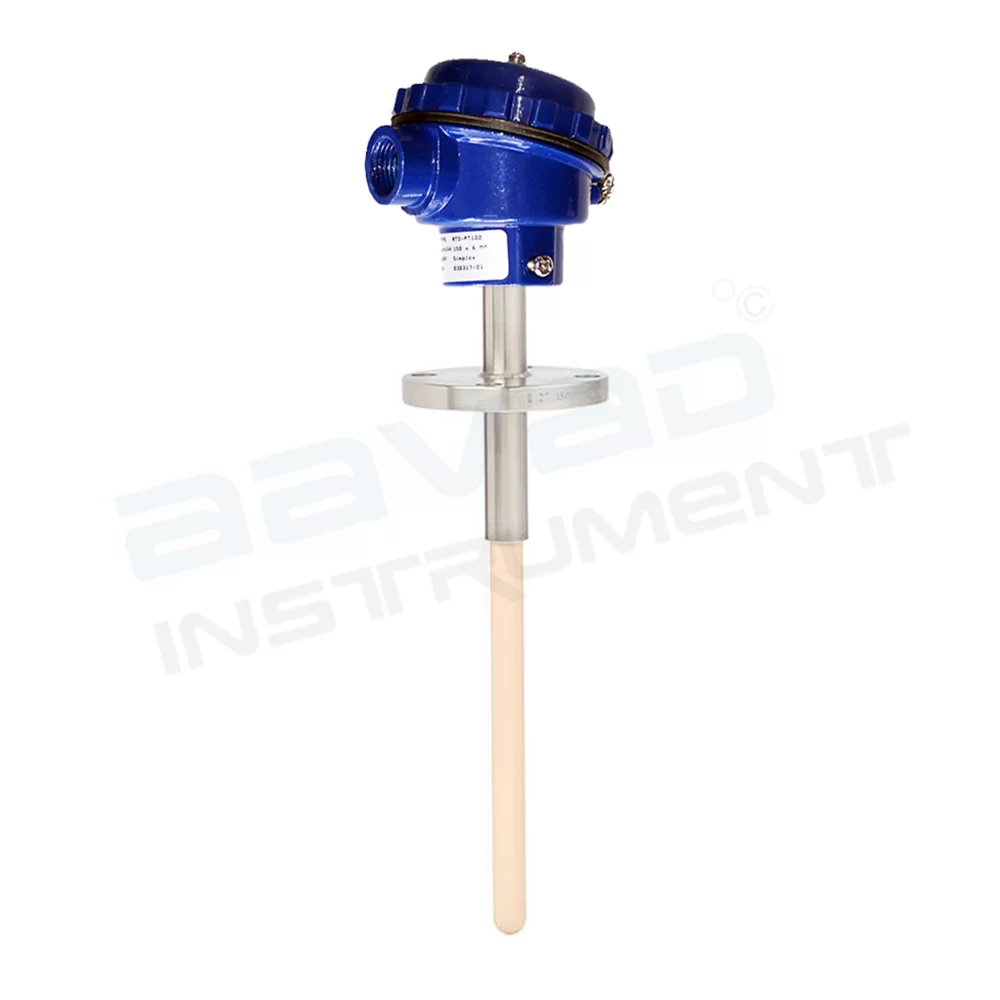

S Type Thermocouple
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | ASWS |
| Element | Pt. Rh (10%)/Pt |
| Element diameter | 0.5 mm |
| Calibration std. | As per ANSI mc 96.1 |
| Configuration | Simplex |
| Insulation | Twin hole ceramic Ker-710 |
| Hot junction | Un-grounded |
| Terminal block | Ceramic with nickel-plated |
| Head | Die-cast aluminum weatherproof ANSI |
| color-coded ‘Blue’ painted with threaded | cover and chain |
| Protection class | As per IP-65 |
| Cable entry | 3/4″ ET |
| Holding tube moc | Inconel -600 tube |
| Holding tube diameter | 30 mm |
| Holding tube length | 250 mm |
| Outer ceramic diameter | 24 X 18 mm. Id of ceramic Ker-710 (K-99, Alumina 99.7%) X 600 mm long |
| Inner ceramic diameter | 15 X 10 mm Id of ceramic Ker-710 (K-99, Alumina 99.7%) X 600 mm long |
| Ceramic insulator | 2 Hole 5.5 |
| Exposed tube sheath length | 1500 mm |
| Joints | Between holding tube & outer & |
| inner tube assembly by high temp. Alumina | compound bonding. |
| Process connection | 2 “300#RF Fix welded Flange |
| Length below flange | 1600 mm |
| Total length below head | 1750 mm |
| Range | Up To 1500°C |
Description
- Type S thermocouples are constructed using one wire of 90% Platinum and 10% Rhodium (the positive or “+” wire) and a second wire of 100% platinum (the negative or “-” wire). -Like type R, type S thermocouples are used For High Temperature Sensing up to 1500 °C.
- The thermocouple working principle is based on the Seeback Effect. This effect states that when a closed circuit is formed by jointing two dissimilar metals at two junctions, and junctions are maintained at different temperatures then an electromotive force (e.m.f.) is induced in this closed circuit.
