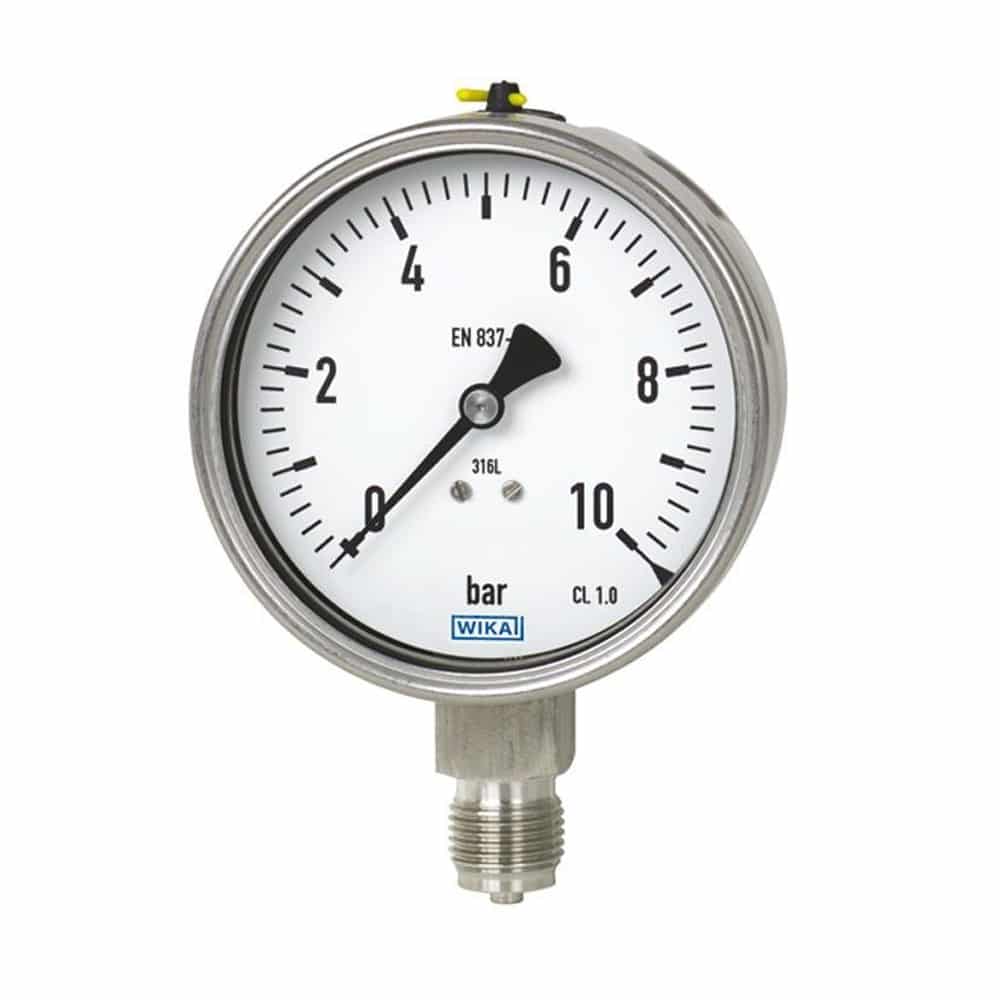

Hydraulic Bourdon Tube Pressure Gauge
Hydraulic Bourdon Tube Pressure Gauge
Bourdon Tube Pressure Gauge
| Parameter | Specification |
|---|---|
| Model | 213.53.63 Bottom |
| Make | Wika |
| Nominal size (mm) | 63 mm |
| Measuring system | Copper alloy |
| Movement | Copper alloy |
| Case | SS with Case vent |
| Window | Clear plastic |
| Dial | White aluminium |
| Pointer | Black aluminium |
| Accuracy | 1.6 % of FS |
| Connection | 1/4″ BSP |
| Scale | Dual scale |
| Filling | Glycerine |
Description
These instruments are based on the proven Bourdon tube measuring system. The plastic case is available in nominal sizes of 27 mm [1″] and 40 mm [1 ½”]. Due to the length and flexibility of the capillary, the mounting position of the pressure gauge can be independent of the measuring point.
