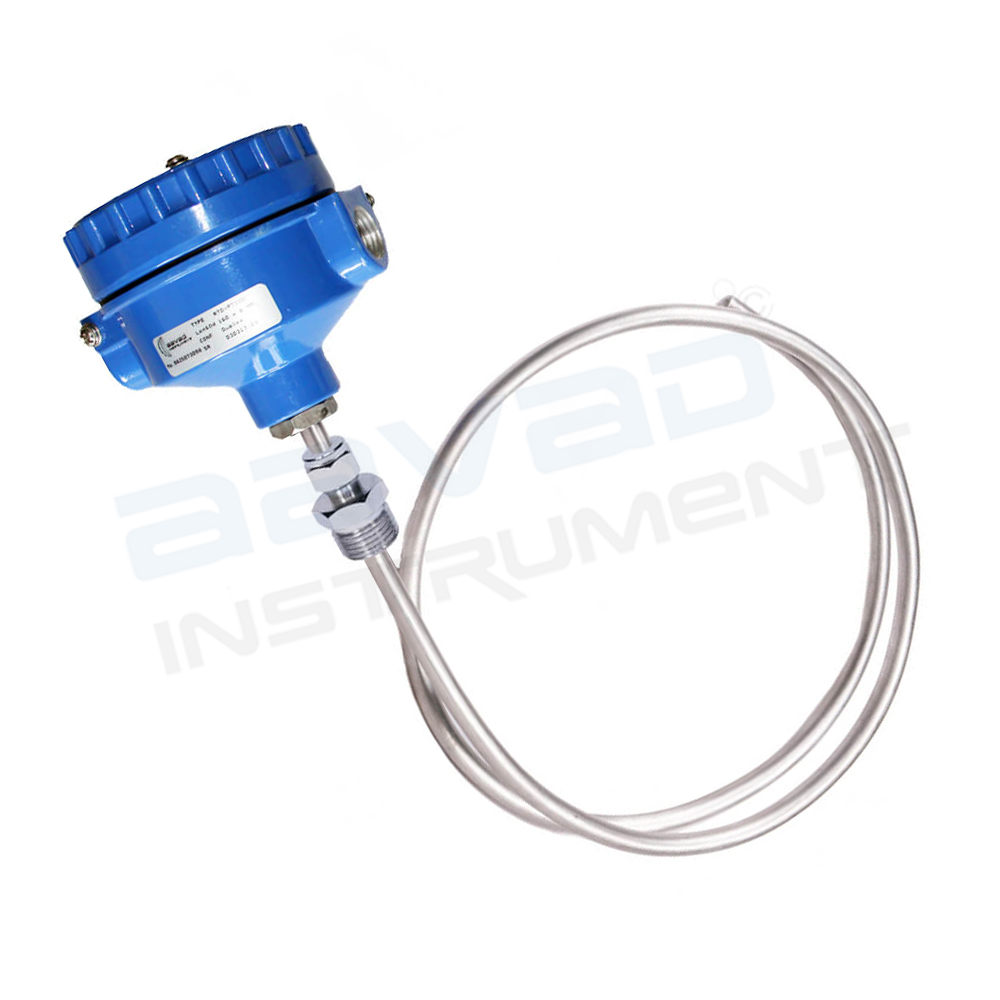

Industrial MI Thermocouple
Industrial MI Thermocouple
Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKFD-I6D |
| Configuration | Duplex |
| Temperature range | 0 To 1000℃ |
| Material of construction | Inconel 600 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) Adjustable |
| Protection head | Die-cast aluminum flameproof head with threaded cap & chain |
| Head protection class | IP-67 |
| Head cable entry connection | ¾ “Et |
| No. of cable entry | Double |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Length | 3500 mm |
Description
- A Mineral Insulated (MI) thermocouple features a mineral oxide insulated sheathed cable of metal. This thermocouple comprises a thermocouple wire that is insulated with magnesium oxide, typically compacted by the process of swaging or drawing the sheath. At Aavad instrument, we provide MI thermocouples manufactured using the best quality MI thermocouple probes housed in an alloy sheath. Owing to their rugged and reliable construction, these thermocouples are being widely considered for harsh and rigorous conditions.
