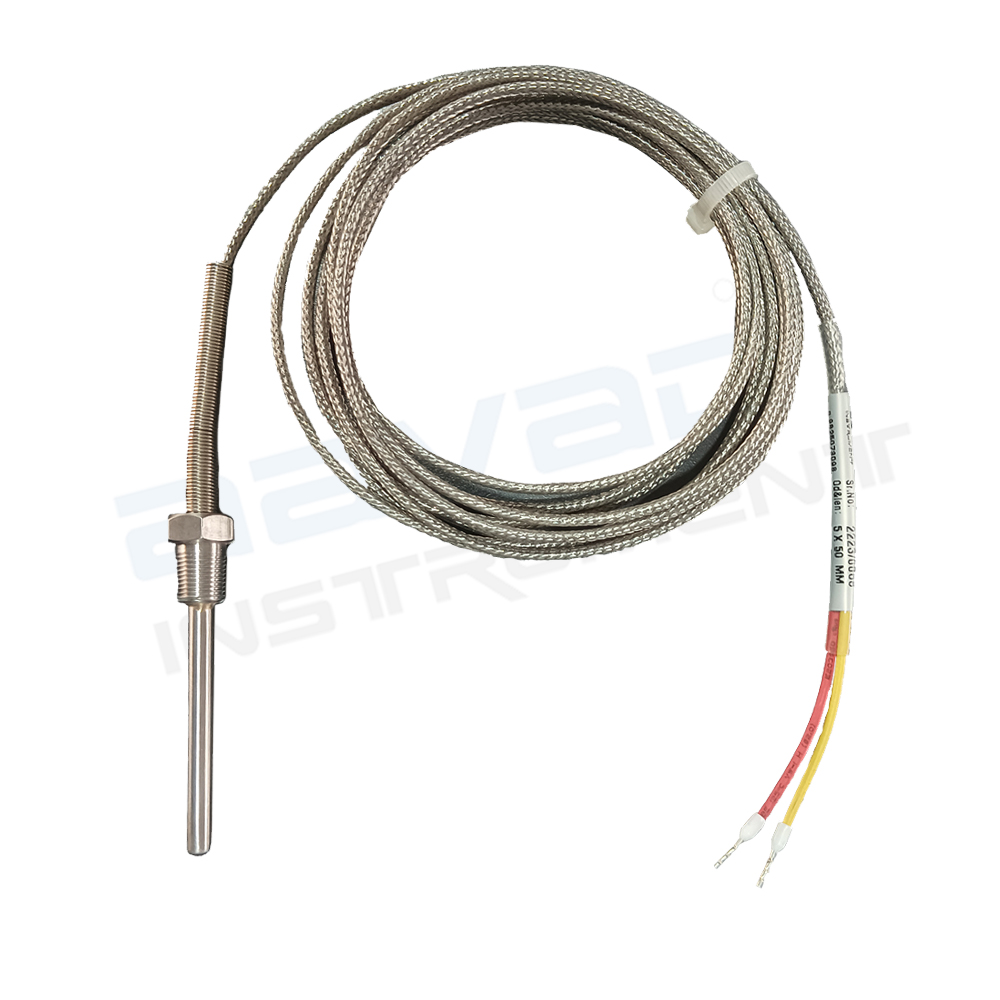

K Type Thermocouple Sensor
K Type Thermocouple Sensor
Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES |
| Configuration | Simplex |
| Temperature range | 0 To 600℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | NPT |
| Process connection size | 1/8” (M) |
| Cable length | 3 Meter |
| Cable type | FG/FG/SS |
| Sensor Od | 5 mm |
| Sensor length | 50 mm |
Description
- K-Type thermocouples are inexpensive, small, dependable, and have fast reaction times. They can measure a wide range of temperatures from -270°C to 1,372°C with a small degree of error. Typically K-type thermocouples are used in temperatures above 540°C and in oxidizing atmospheres.
