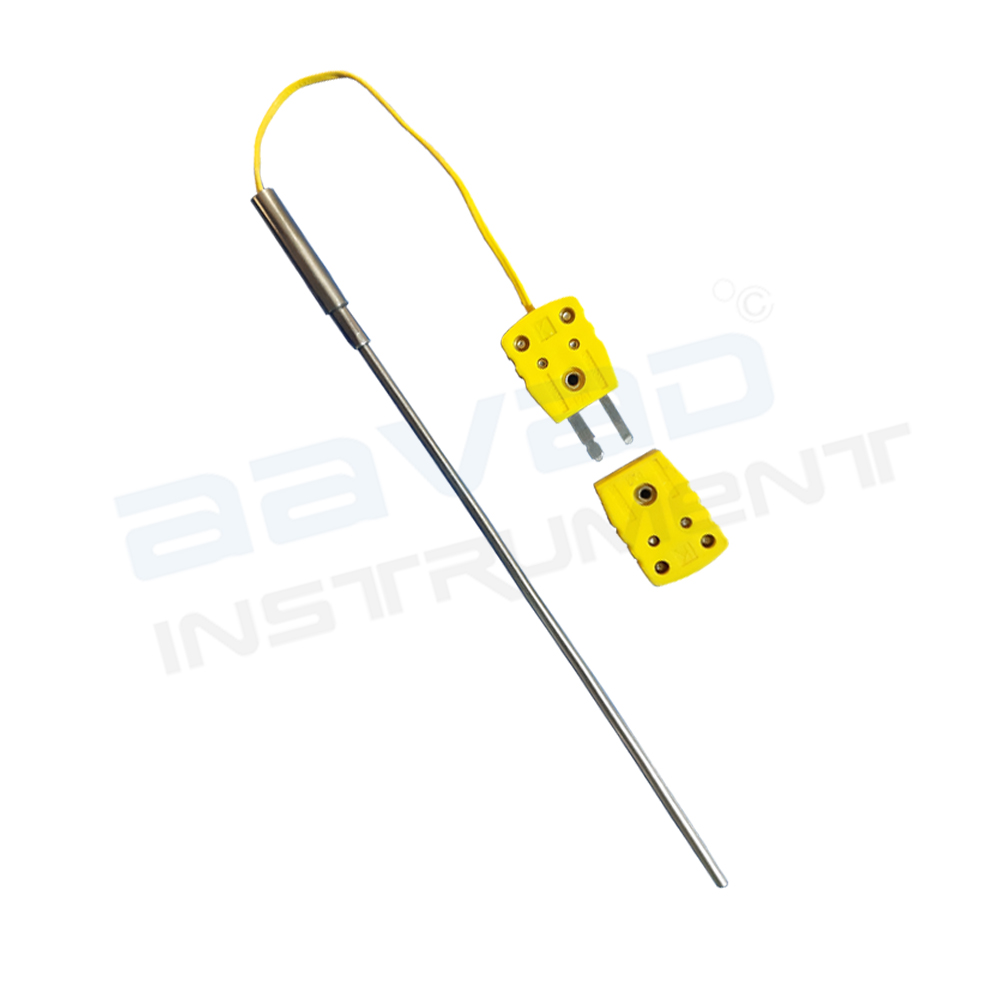

K-Type Thermocouple With Connector
K-Type Thermocouple With Connector
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES – 3×850 |
| Configuration | Simplex |
| Temperature range | 0 To 600℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 1 Meter |
| Cable type | TF/TF |
| Sensor od | 3 mm |
| Sensor length | 850 mm |
| Connector | Omega type small Male – Female Connector |
Description
K-Type Thermocouple Connectors provide an easy connection with thermocouple wires. The spring terminal concept of these connectors offers outstanding connectivity compared with traditional screw-type terminations.
