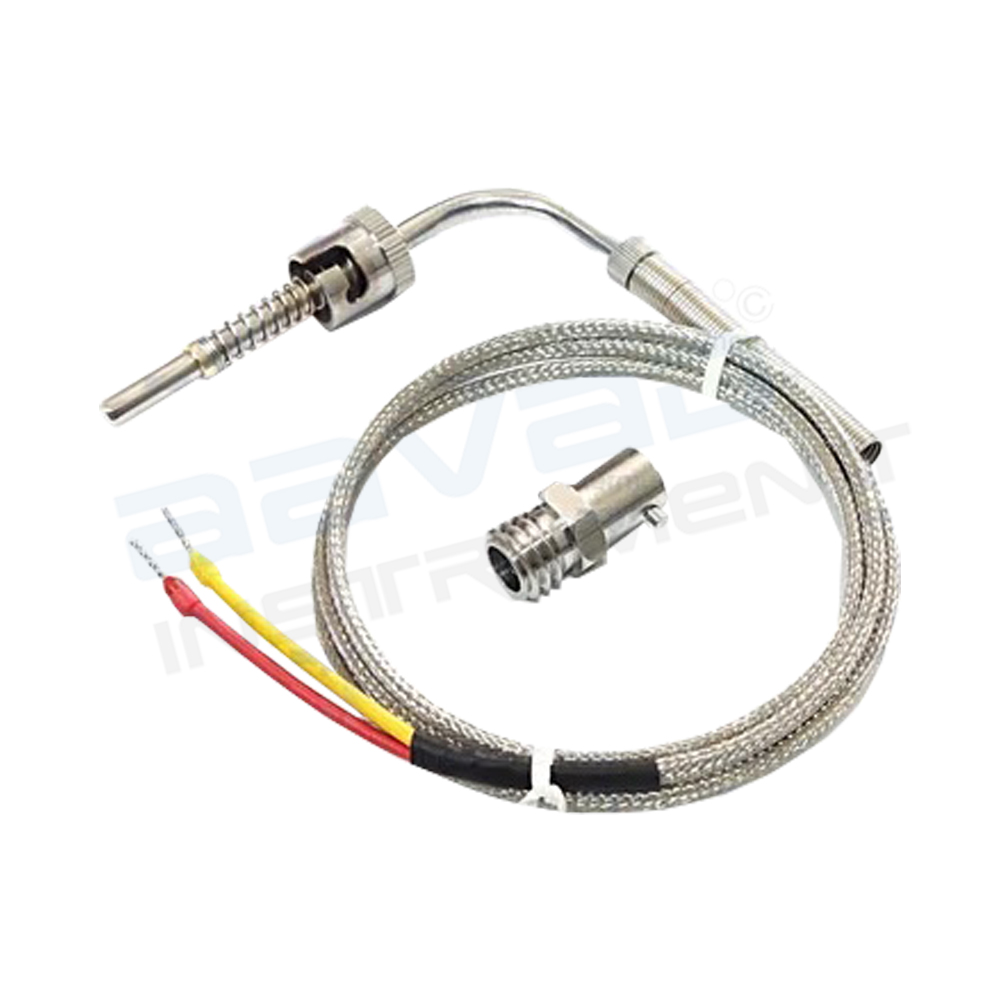

L Type Bayonet Thermocouple
L Type Bayonet Thermocouple
| Parameter | Specification |
|---|---|
| Assembly | Bayonet |
| Type | K-Type |
| Make | Aavad |
| Configuration | Simplex |
| No. Of Wire | 2 Wire |
| Temperature Range | 0 to 600 Degrees C |
| Material Of Construction | SS 316 |
| Wire Insulation | FG/FG/SS |
| Wire Length | 2 Meter |
| Adapter | 1/4” BSP |
| Tip dia. | 6 mm |
| Tip Length | 45 mm |
| Bayonet Cap | Od 14.10 mm, ID 12.00 mm, 1 Pin Locking |
Description
A Bayonet Thermocouple is a specific kind of thermocouple that connects to processes via a Bayonet mounting system.
It is possible to say that a bayonet mount or bayonet fastener is a type of fastening mechanism made up of a cylindrical male side with pins mounted radially and a female receptor with L-shaped slots that match the pins and spring(s) that push the components together.
