MPG-40

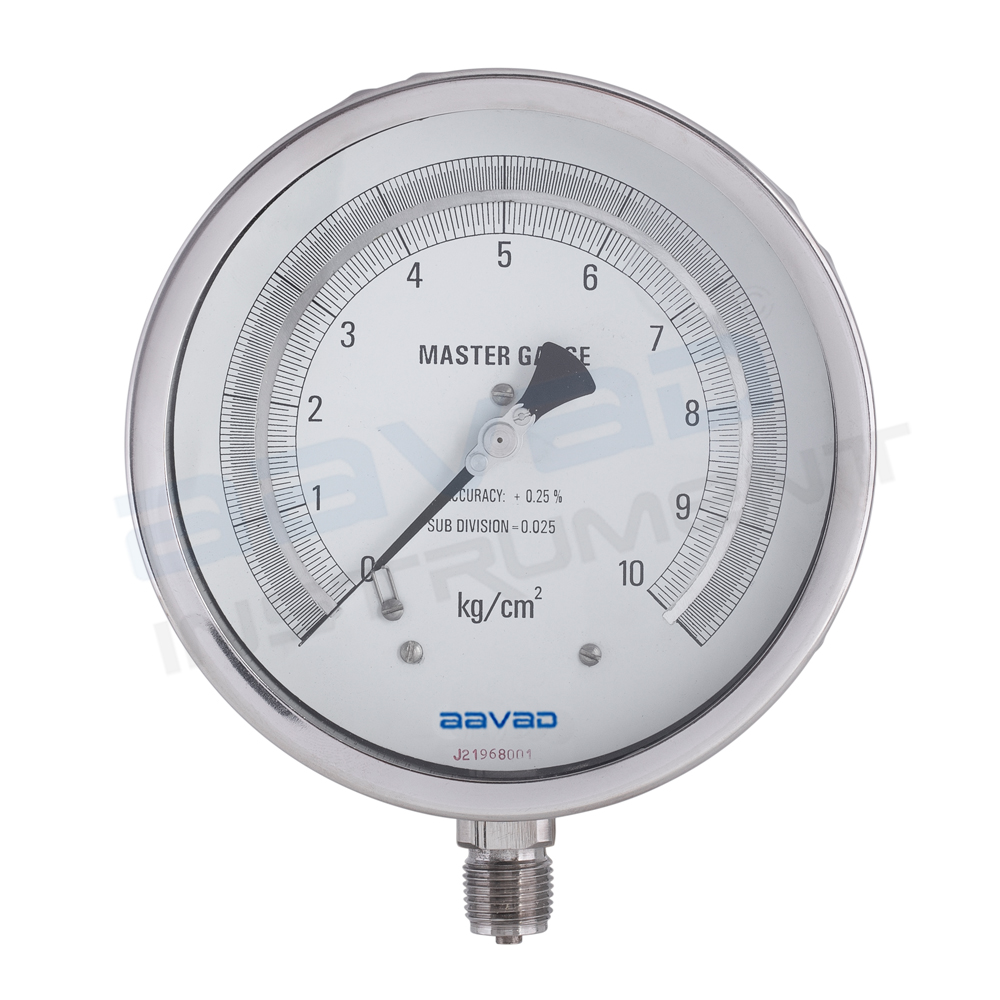

Master Pressure Gauge
Master Pressure Gauge
Test Master Pressure Gauge
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Range | 0 To 10 Kg/Cm2 |
| (Least count | 0.1 Kg/Cm2) |
| Dial size | 150 mm |
| Case & Bezel | SS 304, Bayonet Type |
| Socket | SS 304 |
| Movement | SS 304 |
| Sensing material | SS 316, Bourdon tube |
| Dial | Aluminum, with mirror scale black markings on white background |
| Pointer | Aluminum, Black, Knife Edge, Micro-Zero Pointer |
| Window | Plain glass |
| Blow out disc | Neoprene |
| Accuracy | + /- 0.25% Of FSD |
| Over-range protection | 130% Of FSD |
| Connection | 1/2" Bsp (M) |
| Mounting | Direct bottom |
| Enclosure class | Protection IP-65 |
Description
- Master Pressure Gauge is used to calibrate measurement instruments in ISO 9000 qualification laboratories. These calibration equipment offer accuracy of ± 0.25%.
