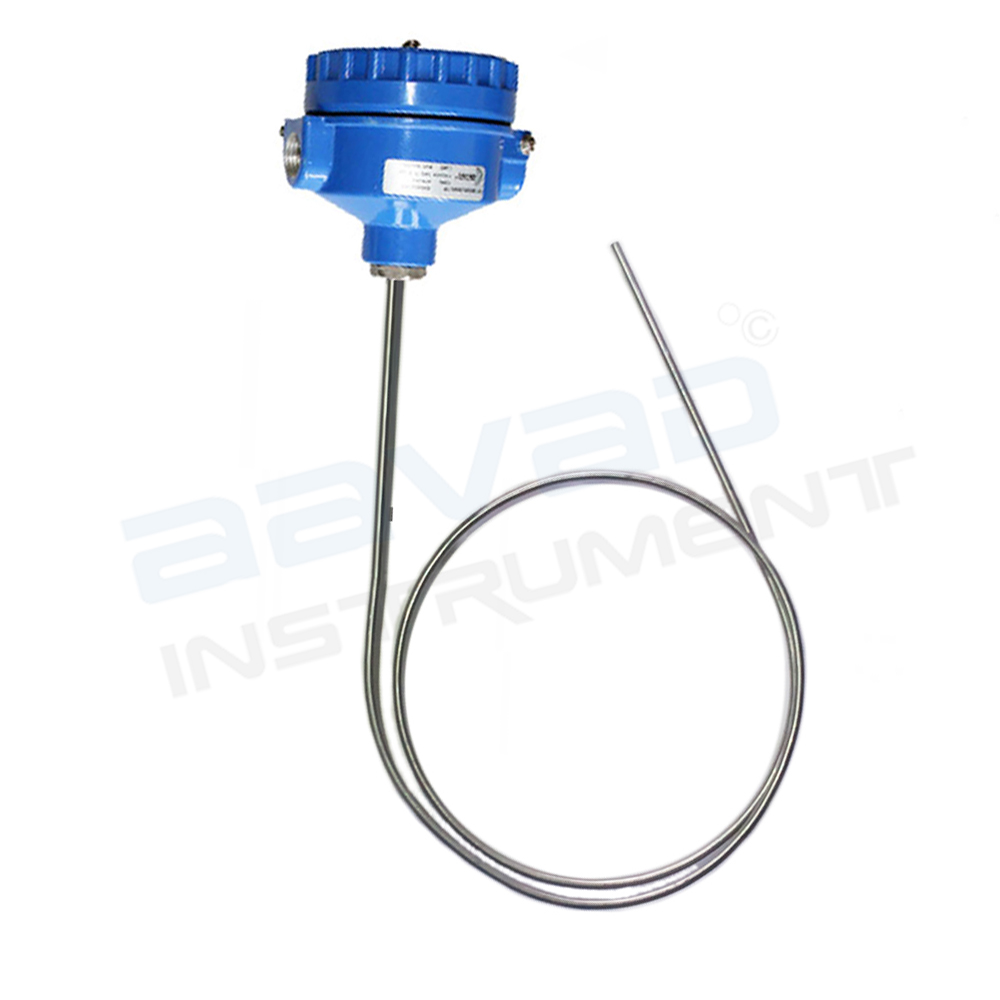

Mineral Insulated Thermocouple
Mineral Insulated Thermocouple
Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKFS-10 |
| Configuration | Simplex |
| Temperature range | 0 To 850℃ |
| Material of construction | SS 310 |
| Insulation | Compacted MgO insulation |
| Protection head | Die-cast aluminum flameproof head with threaded cap & chain |
| Head protection class | IP-67 |
| Head cable entry connection | 1/2" NPT |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 8 mm |
| Length | 1800 mm |
Description
- Mineral insulated thermocouples consist of an outer metal sheath which protects the thermocouple elements from damage and contamination, this sheath is malleable so mineral insulated thermocouples can be easily bent and formed into a variety of shapes to suit your application.
