ARWS-S650

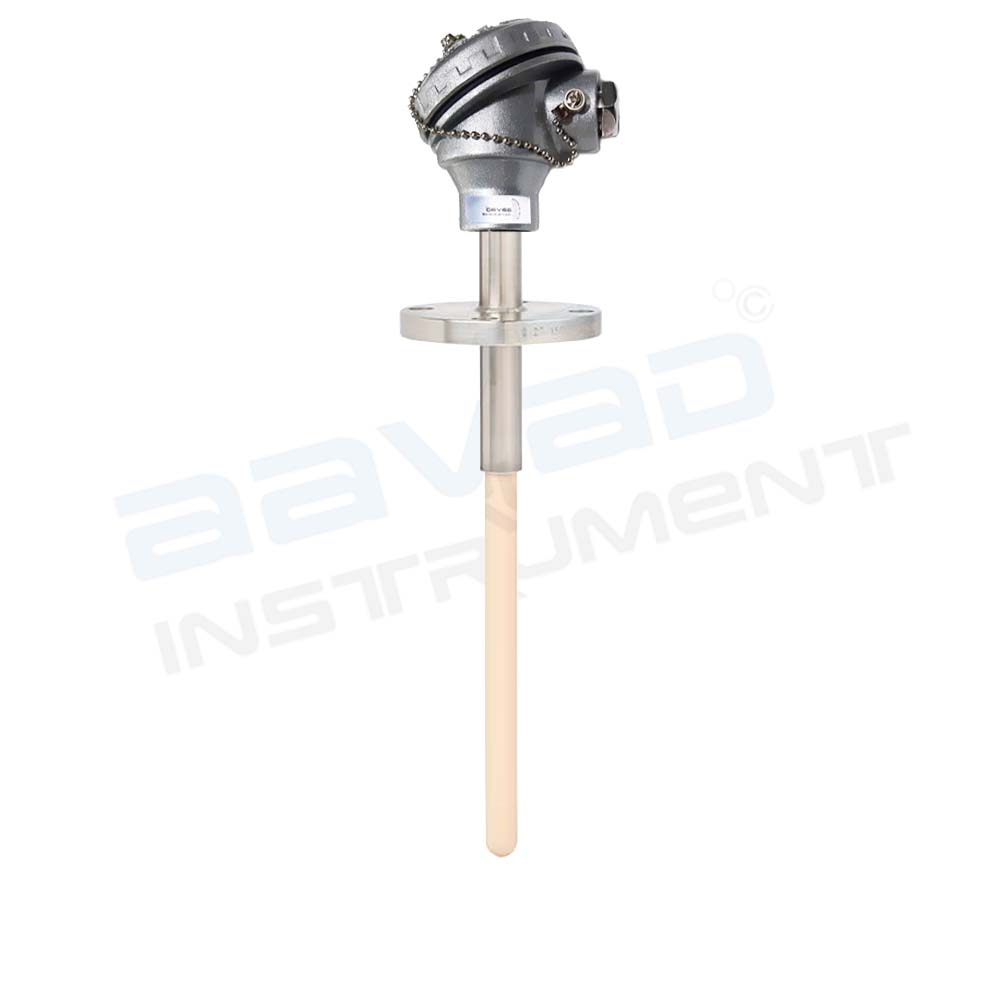

Noble Metal Thermocouples
Noble Metal Thermocouples
R Type Thermocouple
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | ARIS |
| Element | Pt. Rh (13%)/Pt |
| Element diameter | 0.40 mm |
| Calibration std. | As per ANSI mc 96.1 |
| Configuration | Simplex |
| Insulation | Twin hole ceramic Ker-710 |
| Hot junction | Un-grounded |
| Terminal block | Ceramic with nickel-plated brass terminals |
| Head | Die-Cast aluminum weather-proof ANSI color-coded ‘Blue’ painted with threaded cover and chain |
| Protection class | IP-67 |
| Cable entry | 1/2″ (F) NPT |
| Holding tube moc | SS 310 |
| Holding tube diameter | 21 mm |
| Holding tube length | 150 mm |
| Ceramic tube length | 500 mm |
| No. of protection | Single protection |
| Outer ceramic diameter | 15 X 10 mm. Id Of Ceramic Ker-710 |
| Joints | Between holding tube & outer tube assembly by high temp. alumina compound bonding. |
| Process connection | 2 “300#RF Fix welded Flange |
| Total length | 650 mm |
| Range | Up to 1450°C |
Description
- Noble Metal Thermocouples are manufactured with precious or noble metals like Platinum and Rhodium. Noble metal thermocouples can be used in oxidizing or inert applications and must be used with a ceramic protection tube surrounding the thermocouple element. These are normally used for high-temperature applications.
