APXS-CLAMP-1
Pipe Clamp RTD Sensor
Pipe Clamp RTD Sensor
Surface Temperature RTD Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APXS-Clamp |
| Configuration | Simplex, 3 Wire |
| Clamp size | Suitable for 1 " inch pipe |
| Moc | SS 316 |
| Clamp moc | SS |
| Temperature range | 400℃ |
| Cable insulation | TF/TF/SS |
| Cable length | 1 Mtr |
Description

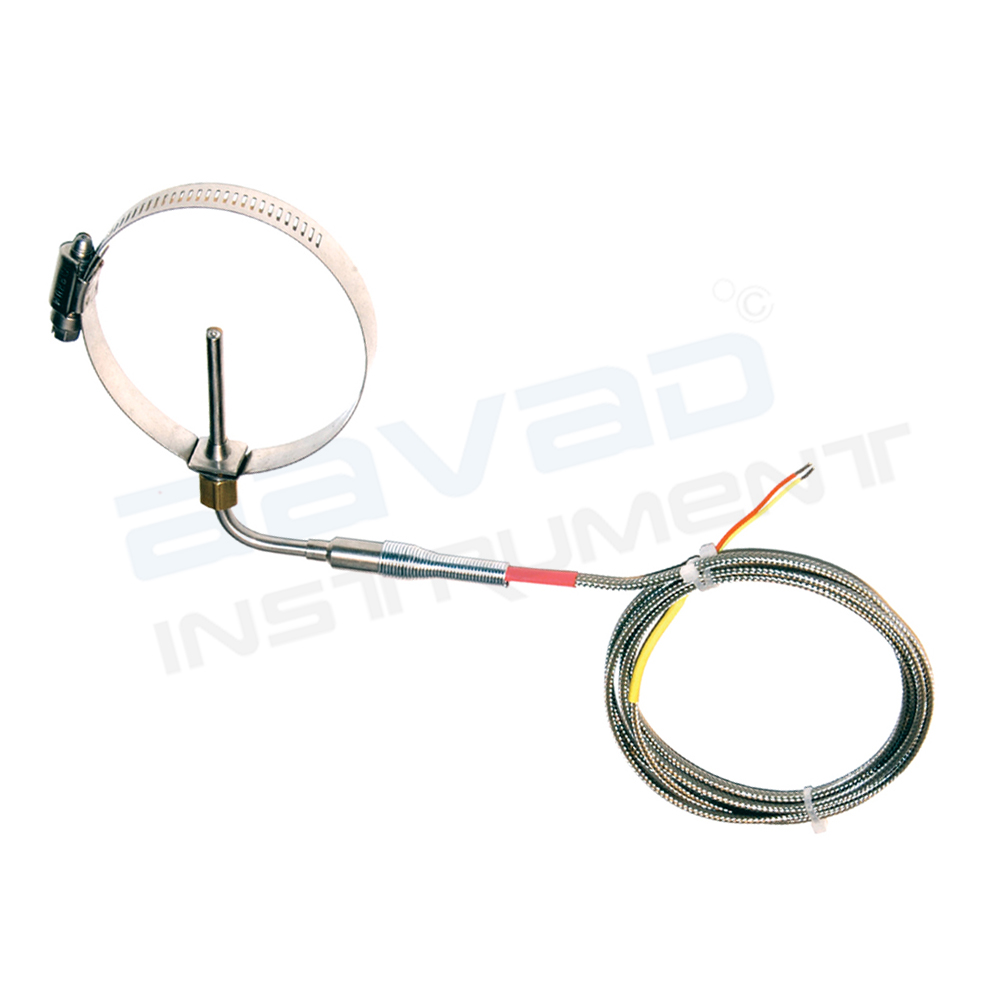

- Pipe Clamp Style RTD are made to monitor pipe temperature ranges without drilling or tapping, well suited for measuring pipe temperature ranges. Also use to assess tubular heating unit sheath temperature. Stainless steel braided shield helps to protect the component, which senses the heat range on the the top of the clamp.
