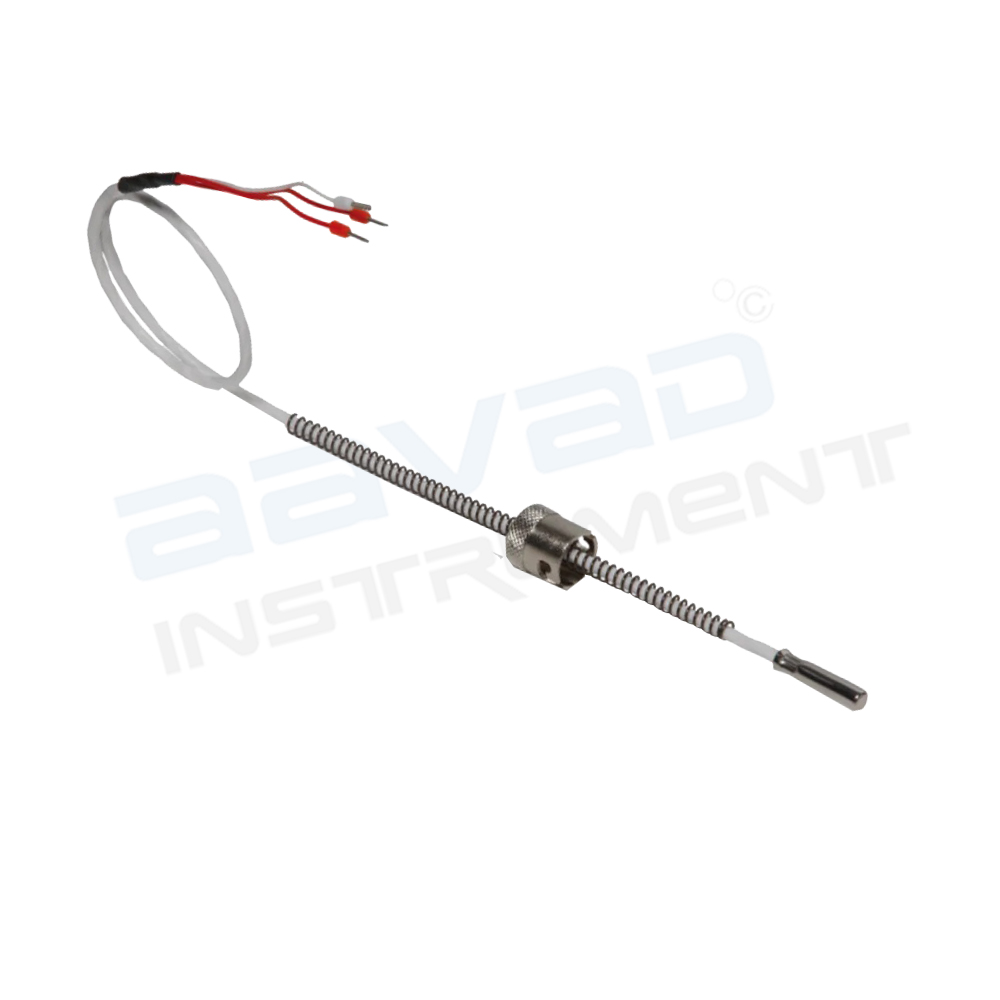

Plastic Bayonet Pt100 Sensors – Fixed Length
Plastic Bayonet Pt100 Sensors – Fixed Length
| Parameter | Specification |
|---|---|
| Assembly | Bayonet |
| Type | PT100 |
| Make | Aavad |
| Accuracy | Class A |
| Configuration | Simplex |
| No. Of Wire | 3 Wire |
| Temperature Range | -50 to 250 Degree C |
| Material Of Construction | SS 316 |
| Wire Insulation | Teflon/Teflon |
| Wire Length | 2 Meter |
| Adapter | 1/4” BSP |
| Tip dia. | 5 mm |
| Tip length | 75 mm |
| Bayonet Cap | Od 14.10 mm, ID 12.00 mm, 1 Pin Locking |
Description
Adjustable bayonet resistance thermometer for plastic extruders and extrusion machinery.
Spring-loaded bayonet resistance thermometers have an adjustable threaded spring that is 200mm long with either a single slot 11.5mm I.D. fixing cap or a 12.5mm I.D. double slot fixing cap to ensure a positive contact within the machined recess.
The 3-wire Pt100 RTD is available in Class A or B and housed in a 4.7mm (3/16”) or 6mm diameter stainless steel tip with 2-meter glass fiber, and stainless steel over the braid lead wire.
