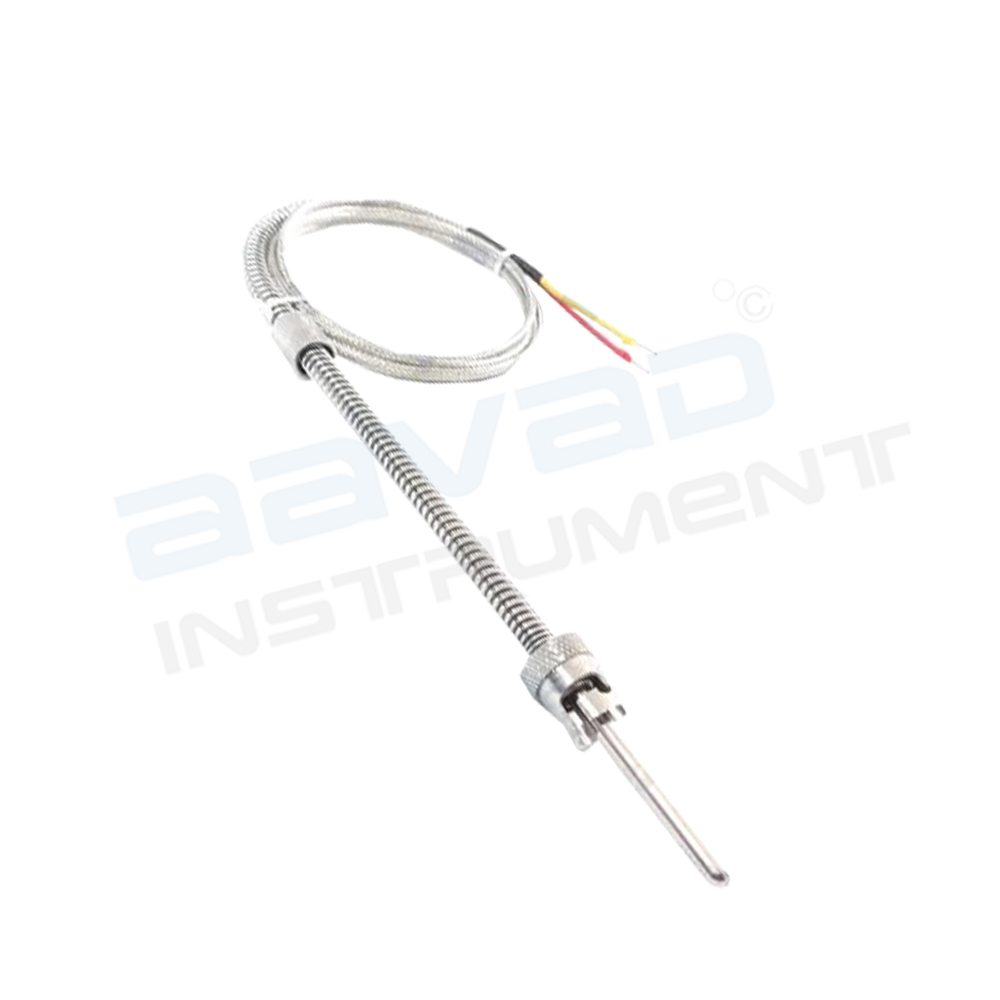

Plastic Extruder Thermocouple
Plastic Extruder Thermocouple
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES |
| Configuration | Simplex |
| Temperature range | 0 To 600°C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 2 Meters |
| Cable type | Fiberglass/Fiberglass/SS |
| Assembly | Rotating Bayonet |
| Tip Length | 85mm |
| Tip od | 6mm |
| Bayonet cap | 1 Pin locking, od 15.5 mm |
Description
This style of thermocouple is commonly used on plastic extruders and injection molding machines. The thermocouple has a spring-loaded adjustable depth bayonet cap. When properly installed the sensing tip presses against the bottom of the hole for accurate temperature readings.
