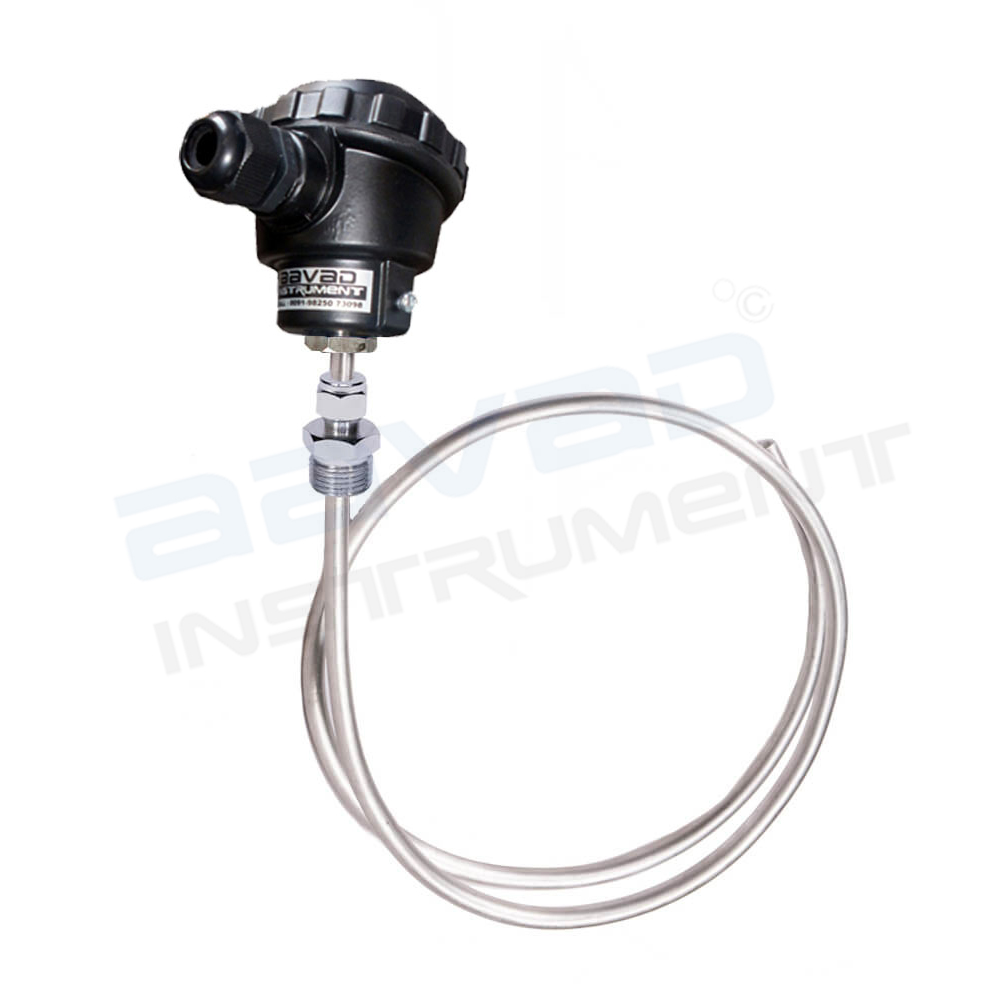

Plastic Head RTD Sensor
Plastic Head RTD Sensor
RTD PT-1000 Sensor
| Parameter | Specification |
|---|---|
| Type | PT-1000 |
| Make | Aavad |
| Model | APPS |
| Configuration | Simplex |
| Temperature range | -50 to 400℃ |
| Material of construction | SS 316 |
| Insulation | compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (m) adjustable |
| Protection head | Plastic head with cable gland |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Length | 200 mm |
Description
- This RTD sensor widely used in industries where we require protection for termination of the RTD sensor
