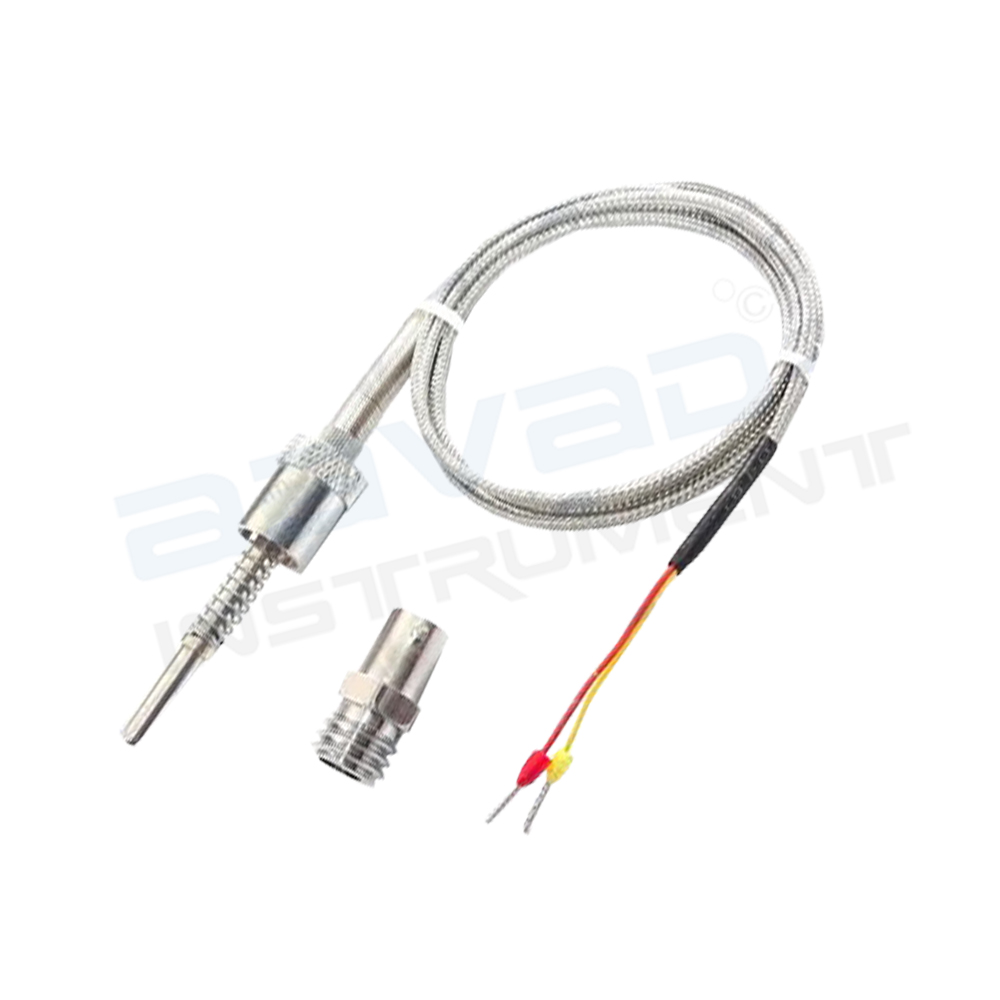

Plastic Machinery Thermocouple
Plastic Machinery Thermocouple
| Parameter | Specification |
|---|---|
| Assembly | Bayonet |
| Type | K-Type |
| Make | Aavad |
| Configuration | Simplex |
| No. Of Wire | 2 Wire |
| Temperature Range | 0 to 600 Degrees C |
| Material Of Construction | SS 316 |
| Wire Insulation | FG/FG/SS |
| Wire Length | 2 Meter |
| Adapter | 1/4” BSP |
| Tip dia. | 6 mm |
| Tip Length | 35 mm |
| Bayonet Cap | Od 14.10 mm, ID 12.00 mm, 1 Pin Locking |
Description
This style of thermocouple is commonly used on plastic extruders and injection molding machines. The thermocouple has a spring-loaded adjustable depth bayonet cap. When properly installed the sensing tip presses against the bottom of the hole for accurate temperature readings.
