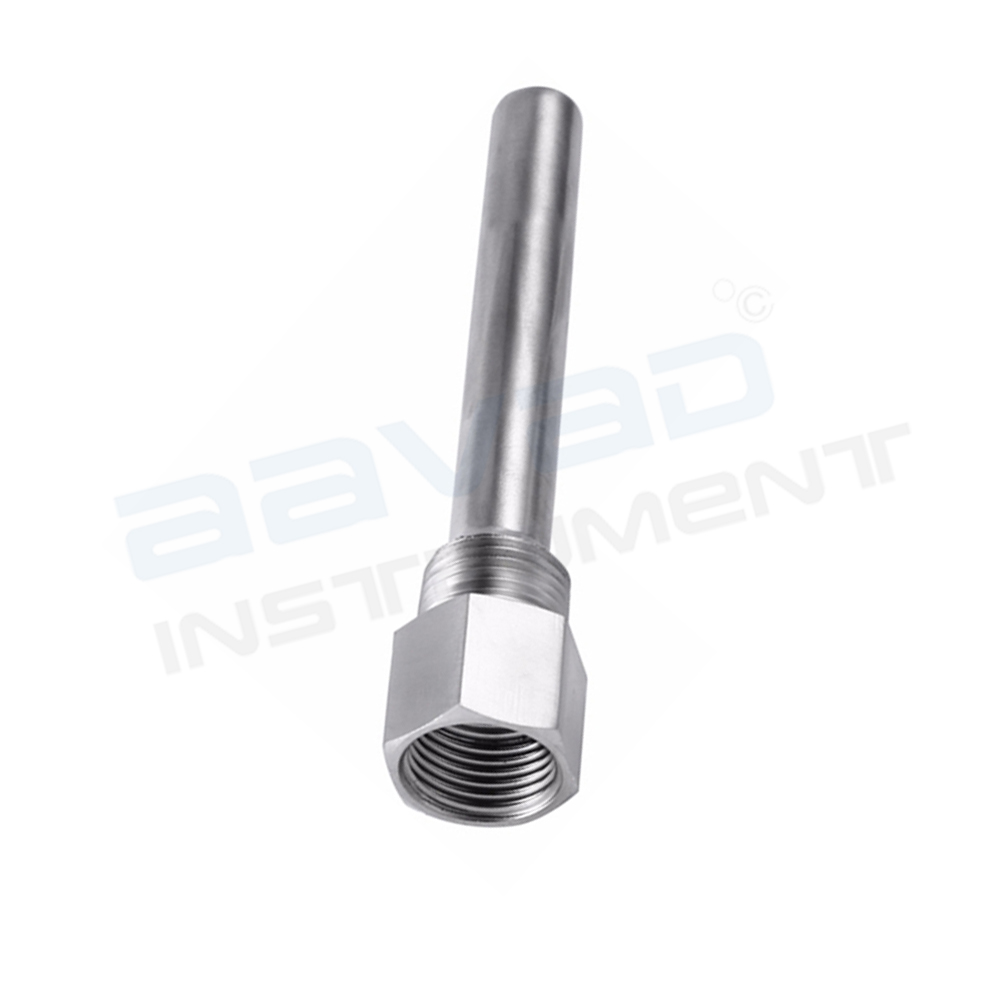

TW-15X7
Protection Tube
Protection Tube
Thermowell (Protection Tube)
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | Tw-15×7 |
| Od | 15 mm |
| Id | 7 mm |
| Moc | SS 316 |
| U Length | 50 mm |
| Process connection | 1/2″ Npt (M) |
| Instrument connection | 1/2″ Npt (F) |
Description
- Thermowells are tubular fittings used to protect temperature sensors installed in industrial processes. A thermowell consists of a tube closed at one end and mounted in the process stream. If the sensor fails, it can be easily replaced without draining the vessel or piping.
