APWD-6

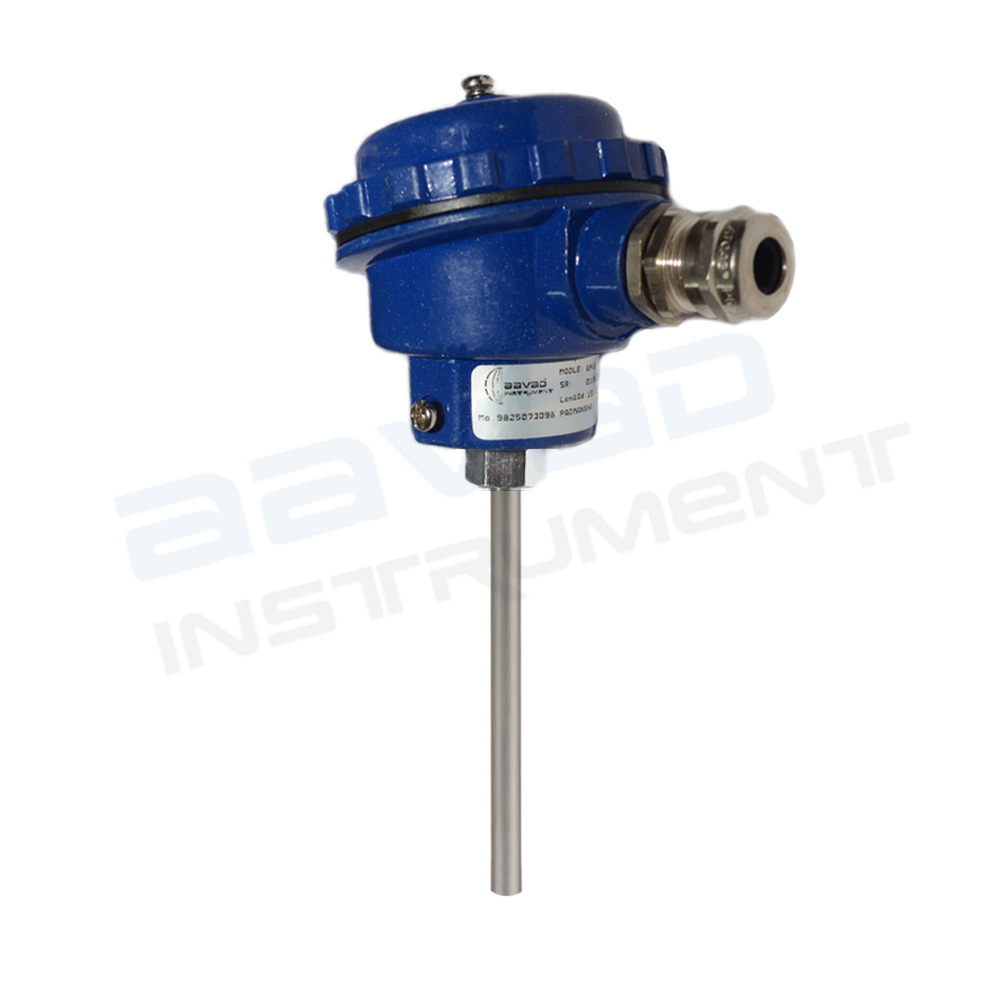

PT100 Sensor With NABL Accredited Calibration Certificate
PT100 Sensor With NABL Accredited Calibration Certificate
RTD PT-100 Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APWD |
| Configuration | 3 Wire, Duplex |
| No. of wire | 3 + 3 |
| Accuracy | Class A |
| Temperature range | -50 To 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | Ip-65 |
| Head cable entry connection | ¾“ Et with cable gland |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| od | 6 mm |
| Length | 150 mm |
Description
- A Pt100 is a sensor used to measure temperature. It is one type of sensor which falls into a group called Resistance Temperature Detectors or RTDs.Before understanding how the sensor works, it is worth looking at some of the terminology used as this is extremely useful to know when identifying a sensor.
