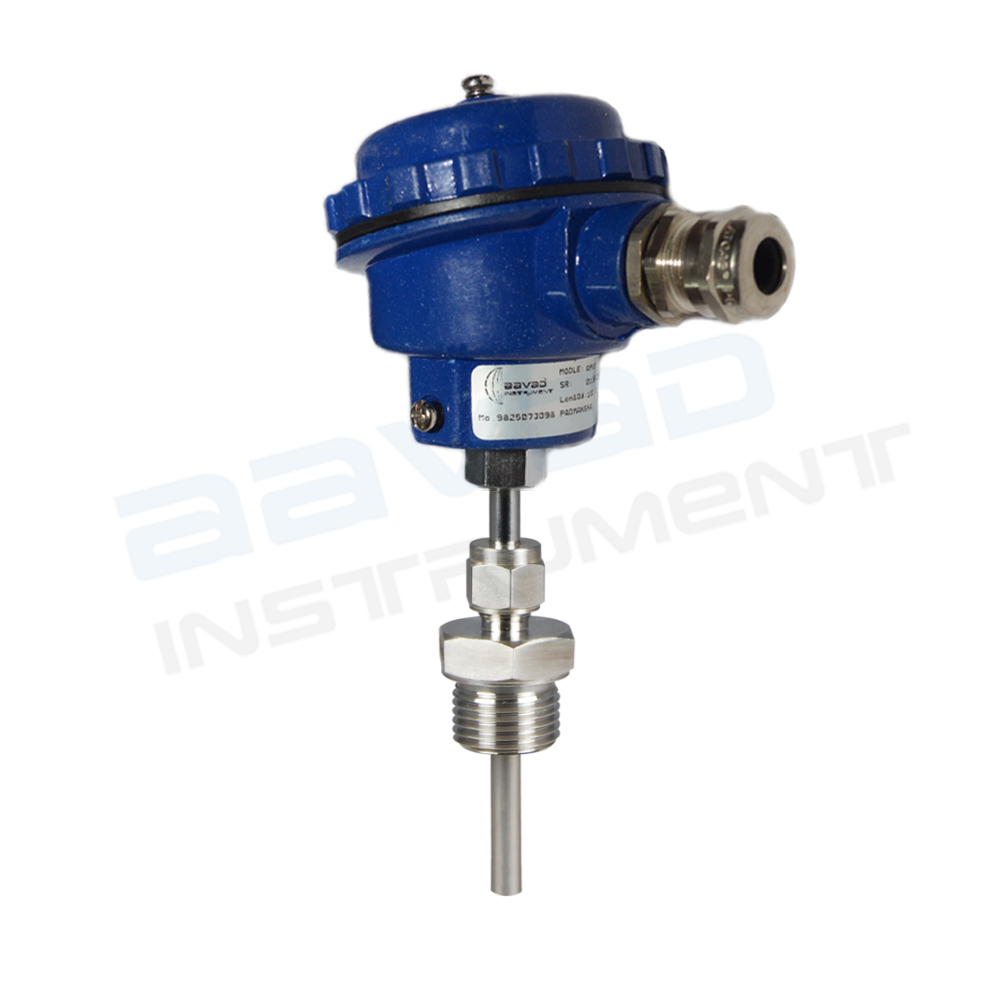

NABL Approved PT-1000 Sensor
NABL Approved PT-1000 Sensor
RTD PT-1000 Sensor
| Parameter | Specification |
|---|---|
| Type | PT-1000 |
| Make | Aavad |
| Model | APWS |
| Configuration | 3-Wire, Simplex |
| Temperature range | -50 to 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2” (m) adjustable |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | Ip-65 |
| Head cable entry connection | ¾“ Et with cable gland |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Length | 150 mm |
Description
- Pt1000 sensors are the second most common type of platinum resistance thermometer. Often resistance thermometers are generally called Pt1000 sensors, even though in reality they may not be the Pt1000 type. Pt refers to that the sensor is made from Platinum (Pt). 1000 refers to that at 0°C sensor has a resistance of 1000 ohms (Ω). Pt1000 sensors are used over Pt100 sensors in two wire applications as Pt1000s make lead resistance less significant.
