R Type Thermocouple
R Type Thermocouple

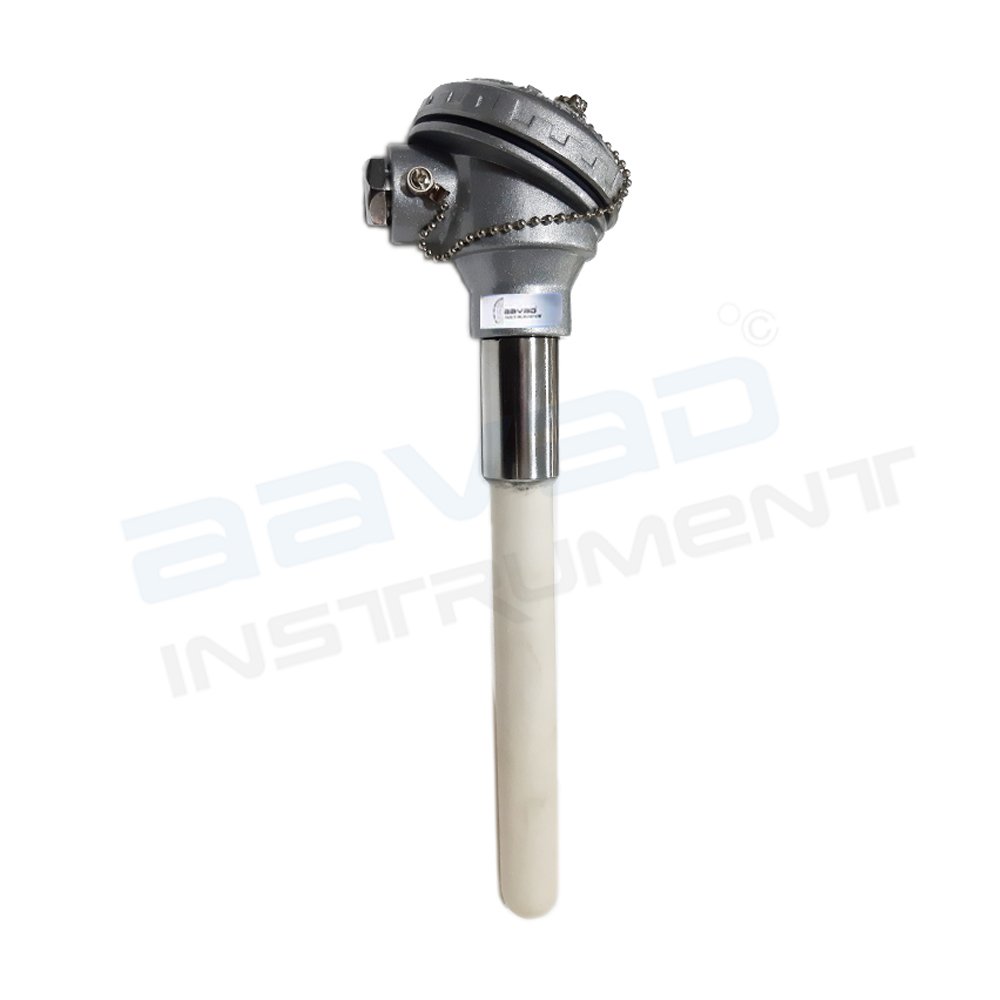

High-Temperature R-Type Thermocouple
| Parameter | Specification |
|---|---|
| Make | AAVAD |
| Model | ARWS |
| Element | Pt. Rh (13%)Pt |
| Element diameter | 0.30 mm |
| Calibration std. | As per ANSI mc 96.1 |
| Configuration | Simplex |
| Insulation | Twin hole ceramic Ker-710 |
| Hot junction | Un-grounded |
| Terminal block | Ceramic with nickel-plated brass terminals |
| Head | Die-Cast aluminum weather-proof ANSI color coded ‘blue’ painted with threaded cover and chain |
| Protection class | IP-67 |
| Cable entry | 1/2″ (F) NPT |
| Holding tube moc | SS 310 tube |
| Holding tube diameter | 21 mm |
| Holding tube length | 150 mm |
| Ceramic tube length | 500 mm |
| No. of protection | Single protection |
| Outer ceramic diameter | 15 X 18 mm. Id of ceramic-710 (k-99, alumina 99.7%) |
| Joints | Between holding tube & ceramic tube by high temp. Alumina compound bonding. |
| Range | up to 1480°C |
Description
-
Thermocouple Type R: Types R thermocouples, (Platinum vs. 13% Rhodium/Platinum), are usable up to 1480°C (2,700°F). They are extremely stable but reducing atmospheres are particularly damaging. Type R thermocouples cover similar applications as Type S, but offer improved stability and a marginal increase in range. Consequently, Type R tends to be used in preference to Type S.
