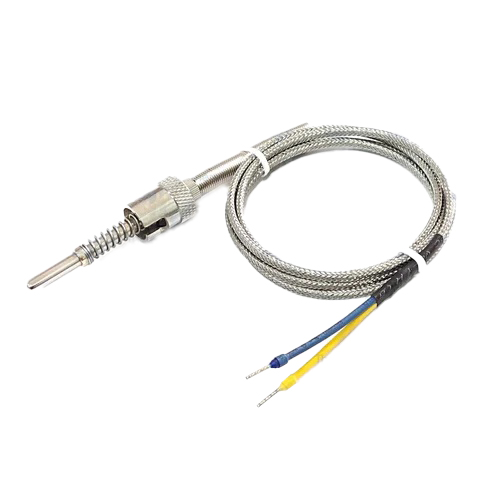

Regular Bayonet Thermocouple
Regular Bayonet Thermocouple
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES |
| Configuration | Simplex |
| Temperature range | 0 To 400°C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 2 Meters |
| Cable type | Fiberglass/Fiberglass/SS |
| Assembly | Rotating Bayonet |
| Tip Length | 45mm |
| Tip od | 6mm |
| Bayonet cap | 1 Pin locking, od 15.5 mm |
Description
It can be said Bayonet mount or a Bayonet Fastener is a fastening mechanism that consists of a cylindrical male side with pins mounted radially, and a female receptor with L-shaped slot(s) which matches the pins and with spring(s) that forces the parts to stick together
