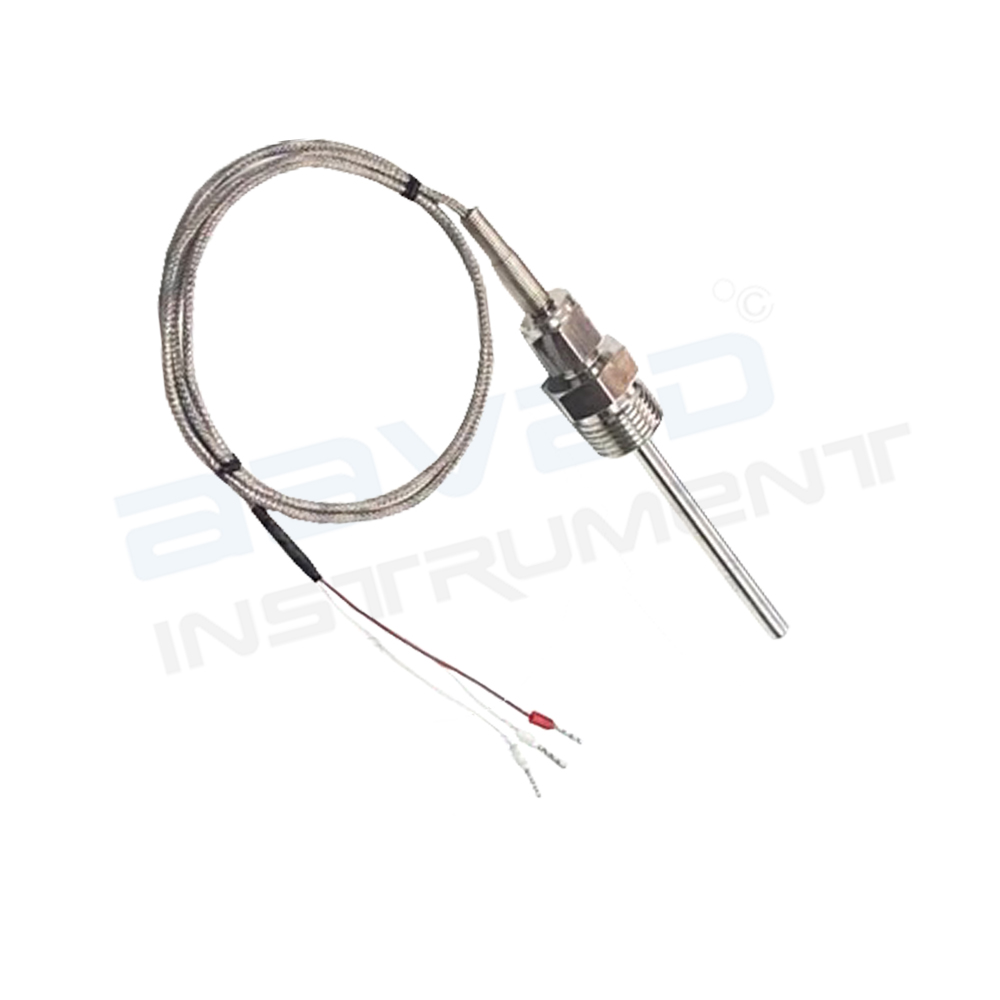

RTD PT100 Thermocouple Sensor
RTD PT100 Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES-6×80 |
| Configuration | Simplex |
| No. of wire in simplex | 3 |
| Total no. of wires | 3 |
| Accuracy | Class A |
| Temperature range | -50 To 400 Degrees C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) adjustable fitting |
| Cable length | 2 Meters |
| Cable type | TF/TF/SS |
| Tip Length | 75 mm |
| Sensor od | 6mm |
Description
A PT100 is the most common type of Resistance Temperature Detector (RTD). The PT100 has a resistance of 100 Ohms at 0°C and 138.5 Ohms at 100°C. PT100s are a common choice for measuring temperature in industrial processes and laboratories. They are a popular choice due to their stability, accuracy, and repeatability.
