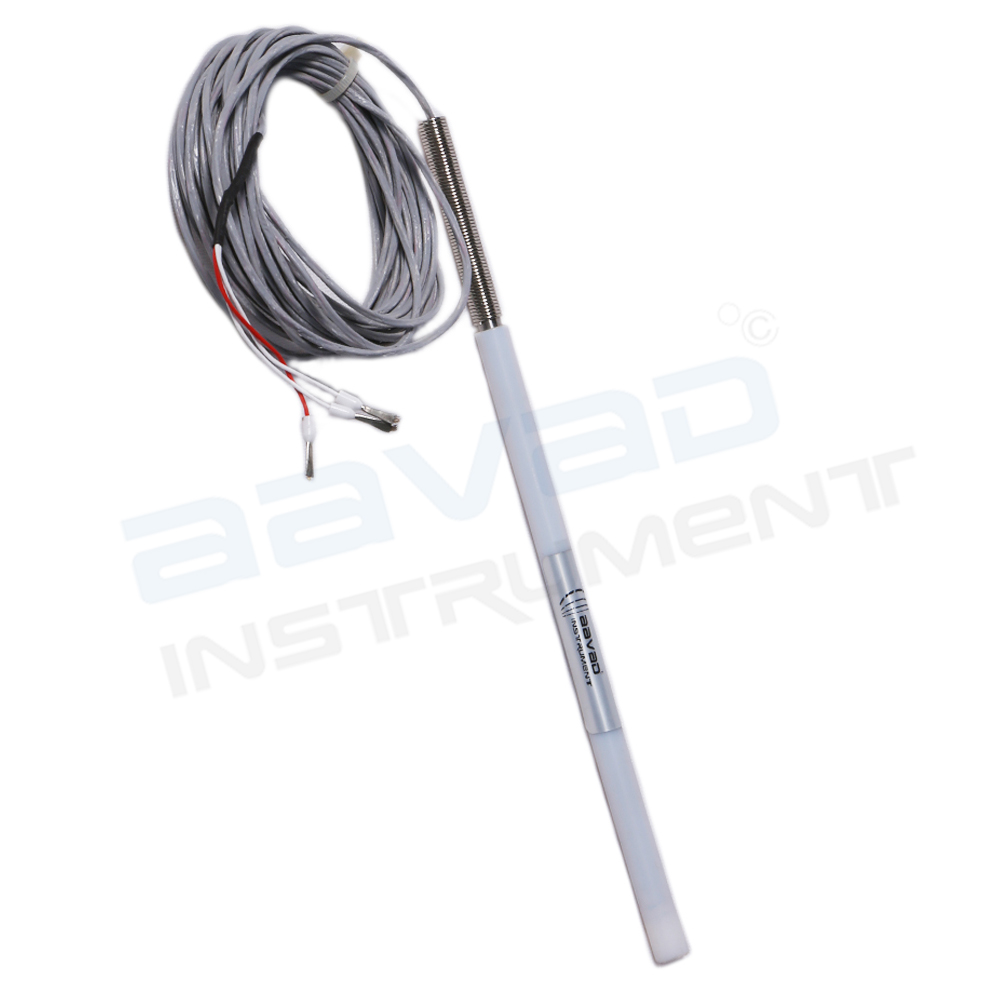

RTD Sensor With Teflon Sleeve
RTD Sensor With Teflon Sleeve
RTD Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES |
| Configuration | Simplex |
| Total no. of wires | 3 |
| Accuracy | Class A |
| Temperature range | 0 to 200℃ |
| Insulation | compacted MgO insulation |
| Cable length | 5 meter |
| Cable type | Teflon/Teflon |
| Sensor length | 700 mm |
| Sensor od | 6 mm with 8 mm Teflon sleeve |
Description
- Teflon Sleeved RTD sensors are designed to measure temperature in highly concentrated acids and alkalis. The RTD sensor measures temperatures up to 200 °C. The sheath is bendable, mineral insulated and covered by a flexible sleeve to allow mounting in complex installations.
