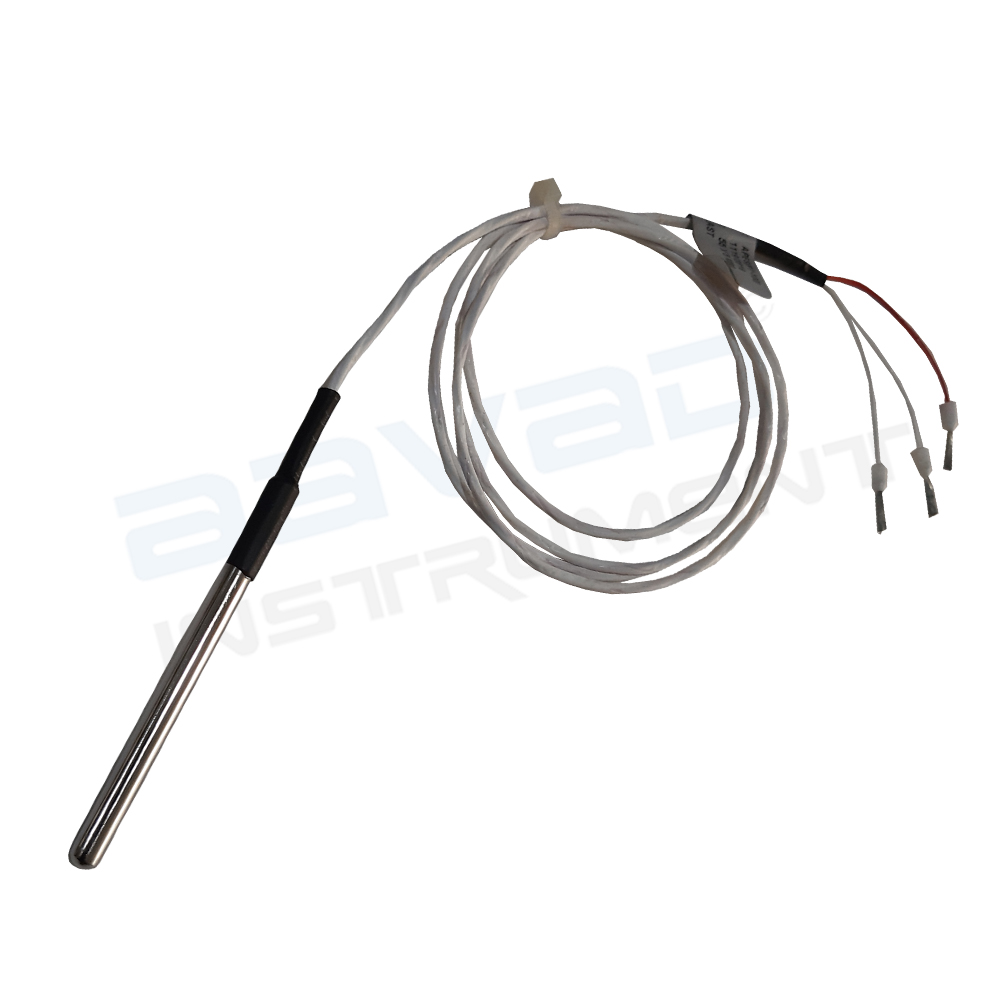

RTD Temperature Probes
RTD Temperature Probes
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES-6X100 |
| Configuration | Simplex |
| Total no. of wires | 3 |
| Accuracy | Class A |
| Temperature range | -50 to 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 3 meter |
| Cable type | TF/TF |
| Sensor od | 6 mm |
| Sensor length | 100 mm |
Description
Resistance Temperature Detectors (RTD’s) are temperature sensing devises consisting of a wire coil or deposited film of pure metal, usually platinum. The element’s resistance increases with temperature in a know and repeatable manner.
RTD’s exhibit excellent accuracy over a wide temperature range, -200˚ to 600 ℃ (-328˚ to 1112˚F).
