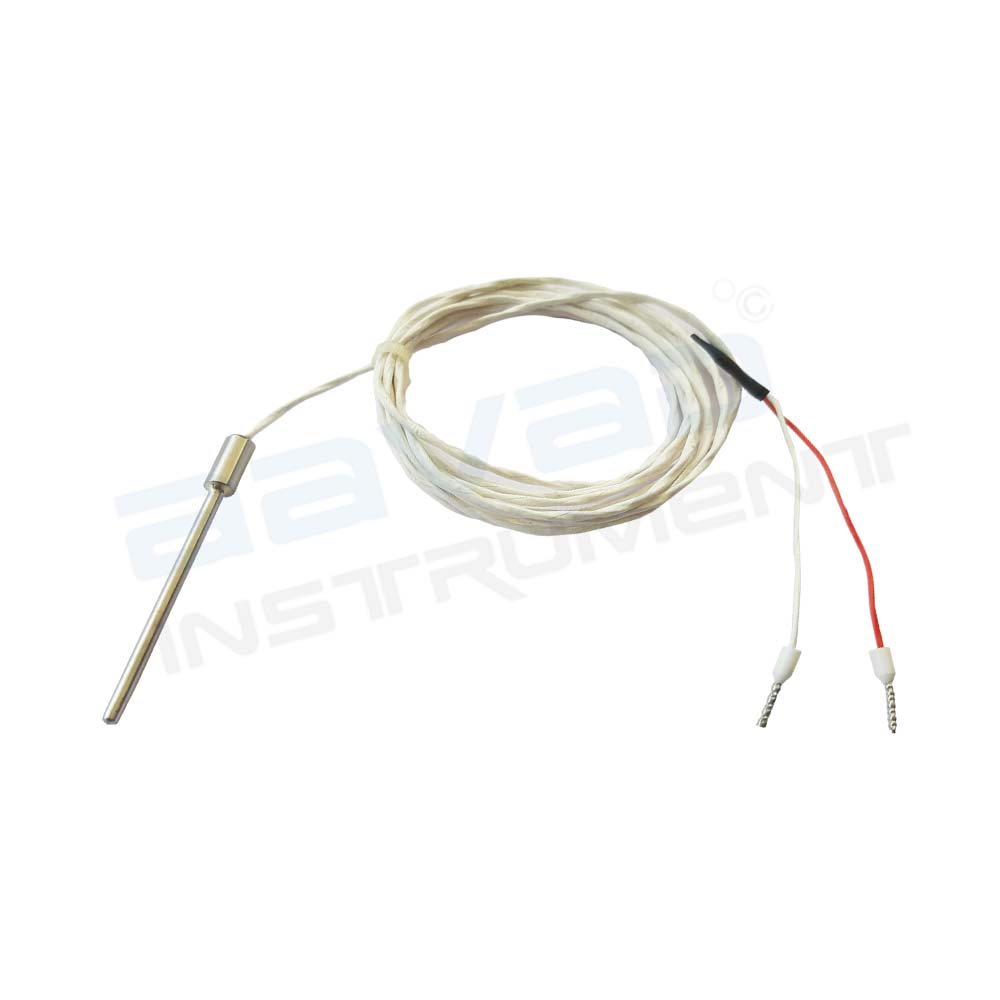

RTD With Seal Pot
RTD With Seal Pot
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES-6×100 |
| Configuration | Simplex |
| Total no. of wires | 2 |
| Accuracy | Class B |
| Temperature range | -50 to 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 1 meter |
| Cable type | TF/TF |
| Sensor od | 6 mm |
| Sensor length | 100 mm |
Description
Pt100 resistance thermometers manufactured from mineral insulated cable are suitable for use up to temperatures of 400°C. The RTD is supplied in 3 or 6mm diameter and is terminated using a plain pot seal, epoxy resin filled with one meter PTFE/PTFE stranded 2 wire connection.
