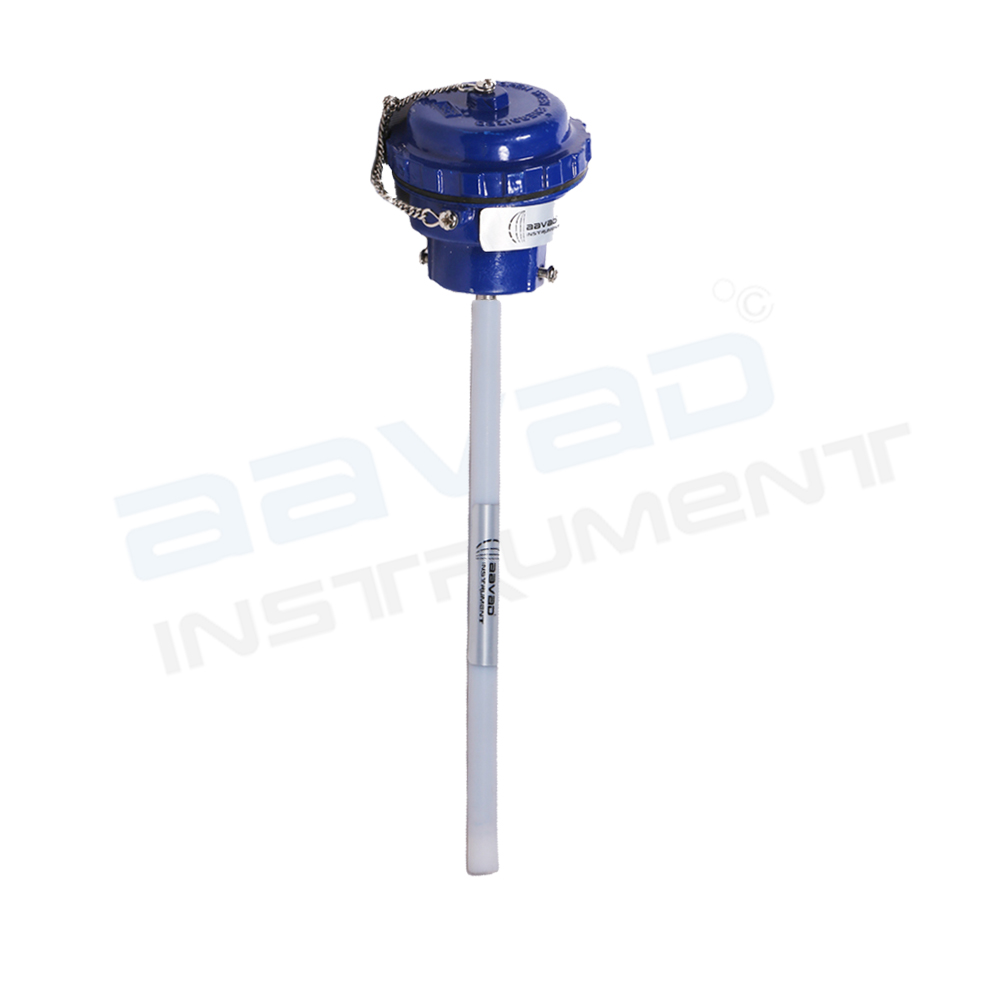

Rtd With Teflon Insulated Outer Sleeve
Rtd With Teflon Insulated Outer Sleeve
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APWS |
| Configuration | Simplex |
| No. of wire | 3 Wire |
| Accuracy | Class A |
| Temperature range | -50 To 300℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | Ip-65 |
| Head cable entry connection | ¾“ Et |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Teflon sleeve od | 8 mm |
| Length | 250 mm |
Description
Aavad Insrument Specifically designed to measure temperatures in the highly corrosive environments of acids and alkalis. Capable of measuring temperatures of acids and alkalis upto 300°C.
Teflon sleeve protects the sheath from corrosion in highly concentrated acids and alkalies. Since the assembly is made of bendable sheath and insulated using flexible sleeve, it can be bent at user level according to the mounting requirements.
