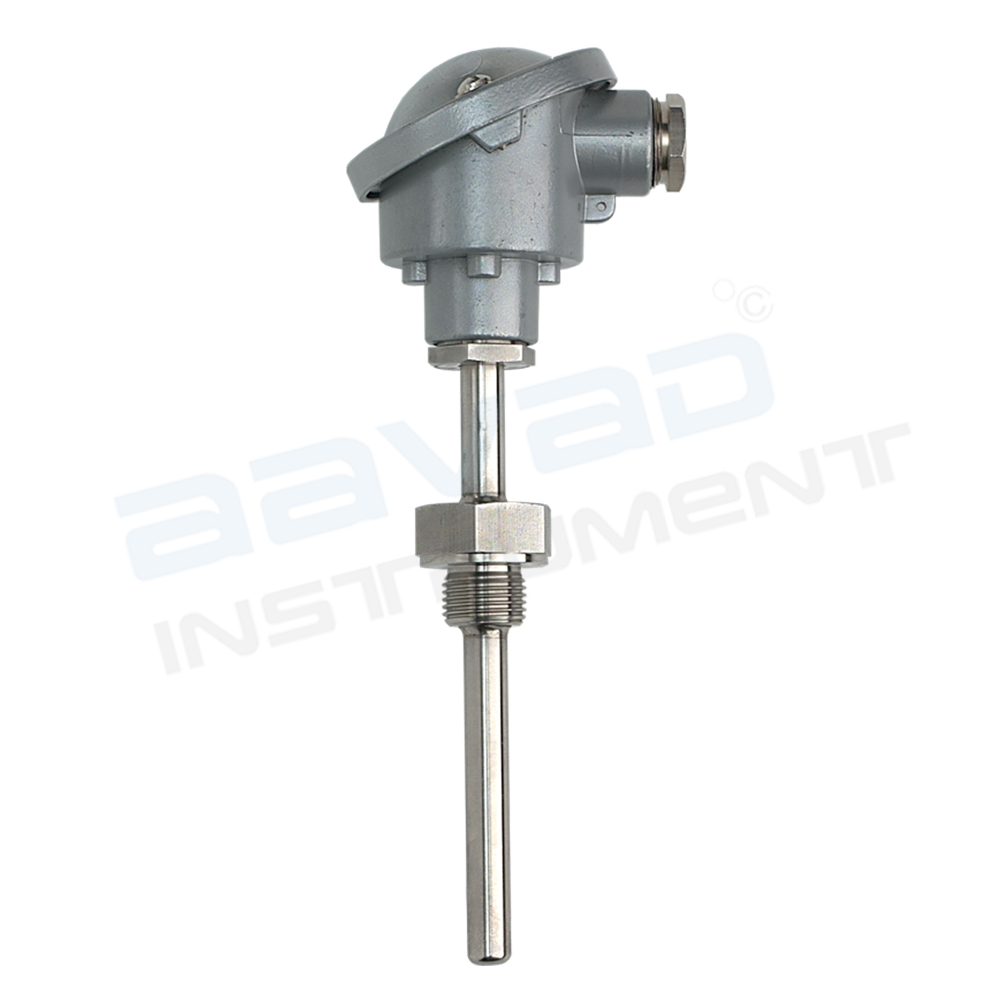

Screw-In RTD Temperature Probe
Screw-In RTD Temperature Probe
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APID |
| Configuration | 3 Wire, Duplex |
| No. of wire | 3 + 3 |
| Accuracy | Class A |
| Temperature range | -50 To 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2” (M) Fix |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | Ip-67 |
| Head cable entry connection | ¾“ Et |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Thread below length | 150 mm |
Description
Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases. The installation type enables the formation of reliable seals for both vacuum and overpressure applications.
