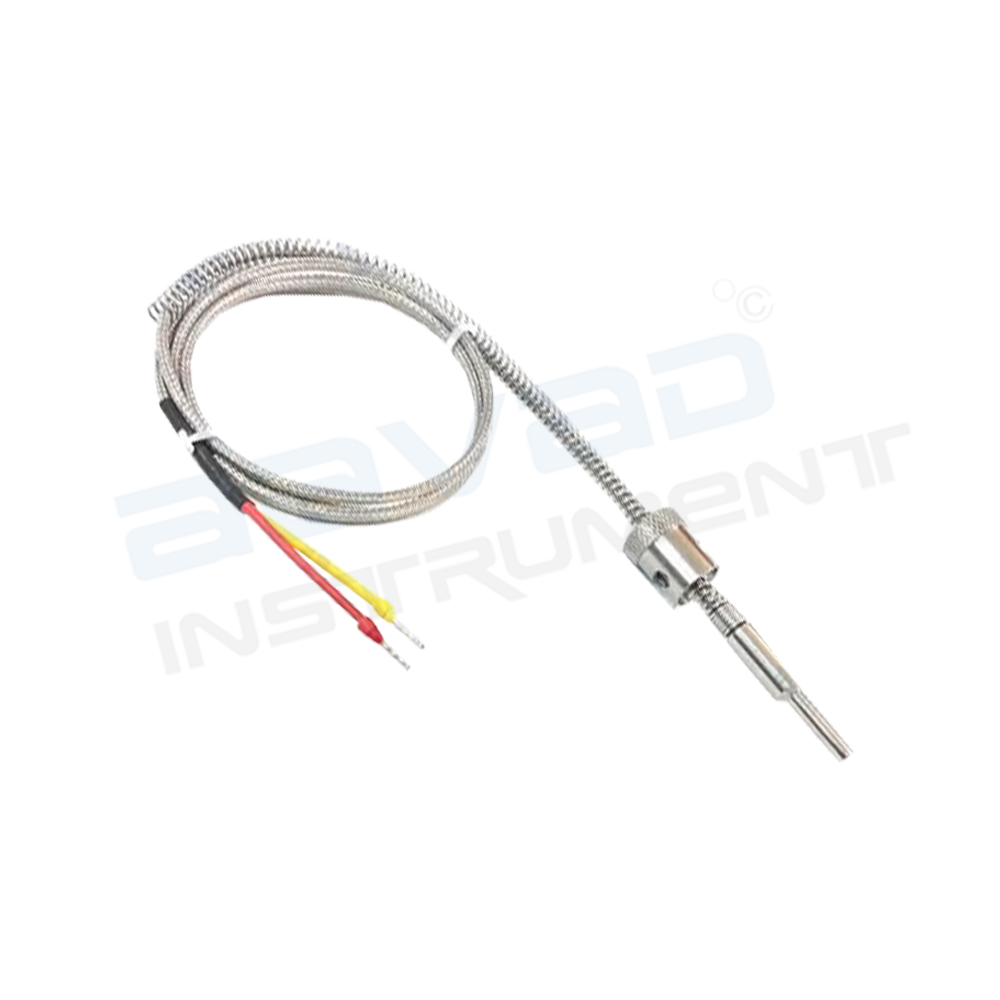

Spring Holder Thermocouple
Spring Holder Thermocouple
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES |
| Configuration | Simplex |
| Temperature range | 0 To 450°C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 2 Meters |
| Cable type | Fiberglass/Fiberglass/SS |
| Assemble | Bayonet |
| Tip 1 OdxLength | 4x25mm |
| Tip 2 OdxLength | 6x35mm |
| Bayonet cap | 2 Pin locking, od 15.5 mm |
Description
A rotating holder Thermocouple is a type of thermocouple that uses a Bayonet type mounting for process connection, It’s the most commonly used type of thermocouple…
It can be said Bayonet mount or a Bayonet Fastener is a fastening mechanism that consists of a cylindrical male side with pins mounted radially, and a female receptor with L-shaped slot(s) which matches the pins and with spring(s) that forces the parts to stick together
