AKWD-I

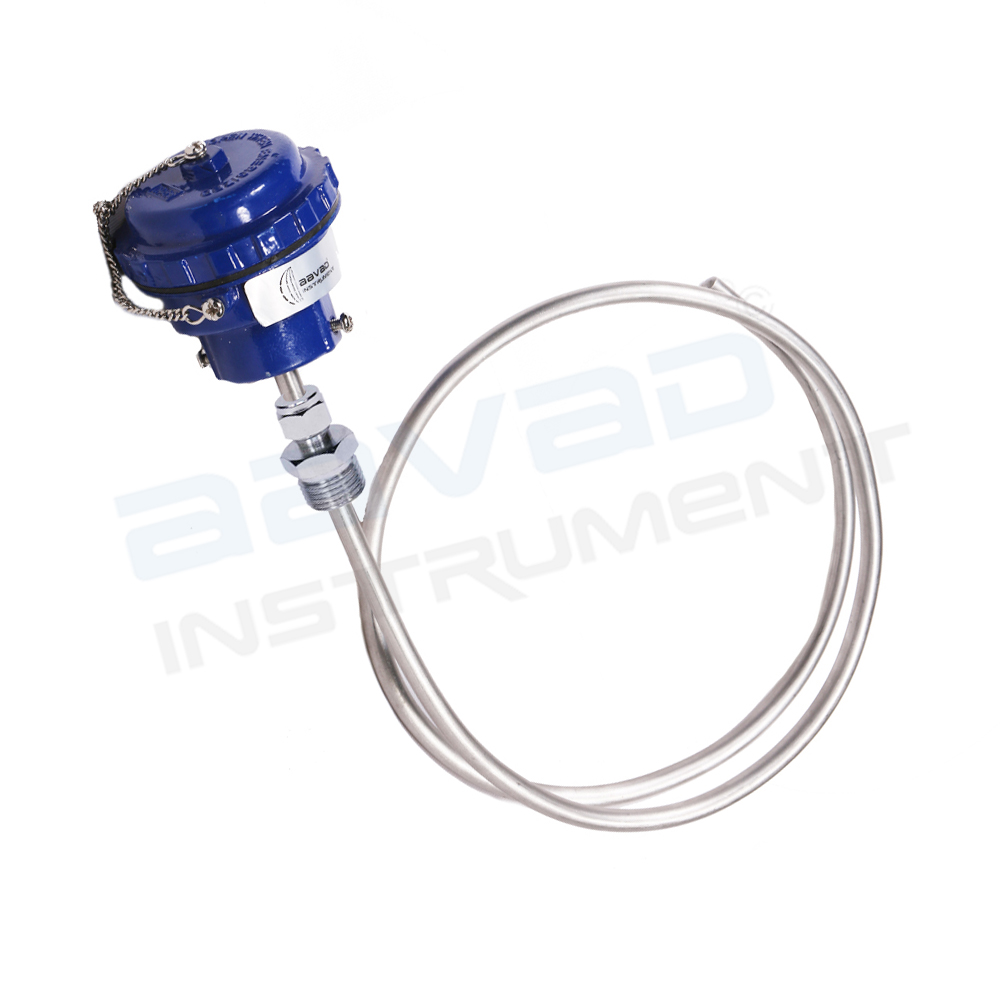

SS Thermocouple
SS Thermocouple
Duplex Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKWD |
| Configuration | Duplex |
| Temperature range | 0 To 650℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) adjustable |
| Protection head | Die-Cast aluminum head with threaded cap & chain |
| Head protection class | IP-65 |
| Head cable entry connection | ¾ “Et |
| No. of cable entry | Single |
| Terminal block | Nickel Plated ceramic terminal block |
| Od | 6 mm |
| Length | 1100 mm |
Description
- The conductor materials in base metal thermocouples are made of common and inexpensive metals such as Nickel, Copper and Iron. Type E: The Type E thermocouple has a Chromel (Nickel-10% Chromium) positive leg and a Constantan (Nickel- 45% Copper) negative leg.
