AI-5941
Temperature Indicator
Temperature Indicator

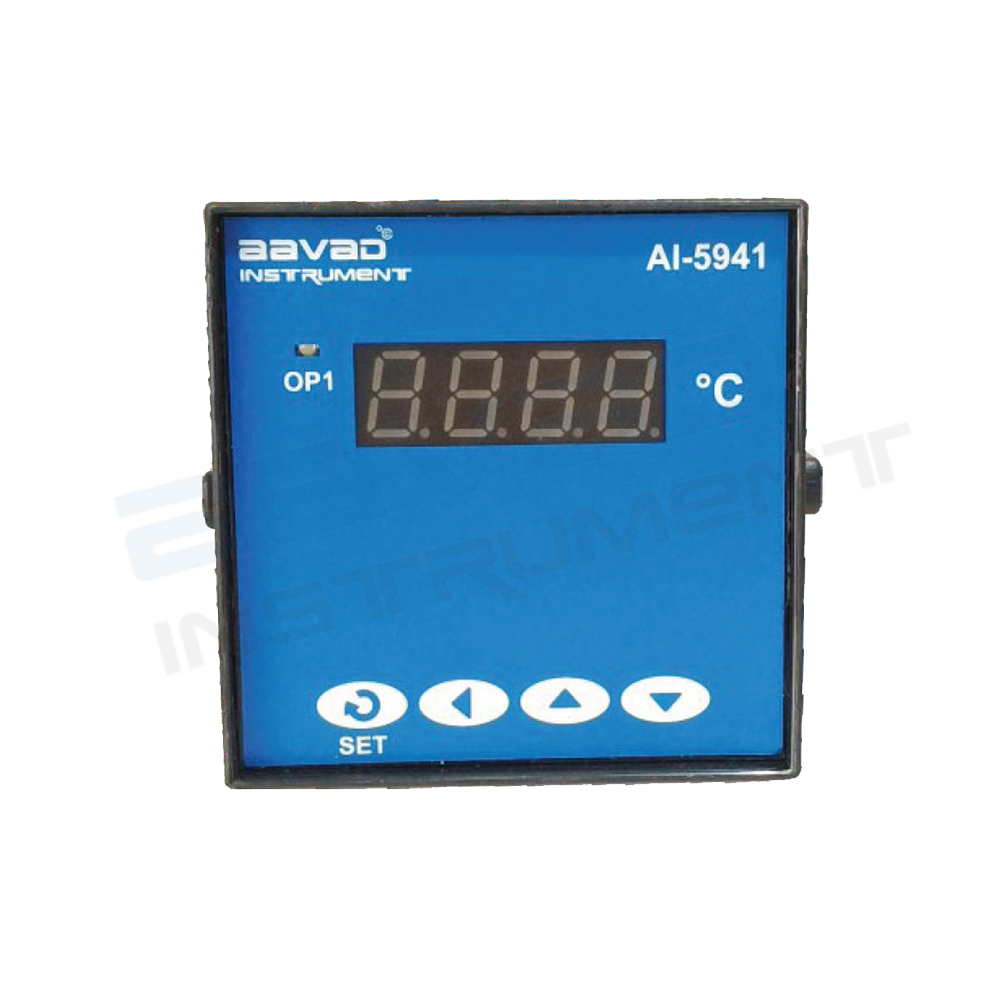

Temperature Indicator AI-5941
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | Ai-5941 |
| Size | 96 X 96 mm |
| Sensor input | T/C: J, K, R, S, RTD: PT-100 |
| Resolution | T/C: 1°C & PT-100: 1°C/ 0.1°C |
| Sampling rate | 250 msec |
| Accuracy | 0.3% Fs |
| Display | Height & color: 0.56’’ White |
| No. of digits | 4 Digits single row |
| Led indication | Output status |
| Output | Relay: 5a @ 250V ac/ 30V dc, SSR drive: 12V dc @ 30mA |
| Supply voltage | 90 – 270V ac/dc (24V dc available on request) |
| Ambient temperature | 0 To 50 °C |
| Humidity | 95% Rh (Non-Condensing) |
Description
- Temperature indicators. Temperature indicators are installation instruments which can process signals from temperature sensors and show them on the display. Temperature indicators enable easy and economic valuation of resistance sensors, such as Pt100 or different thermo element types.
